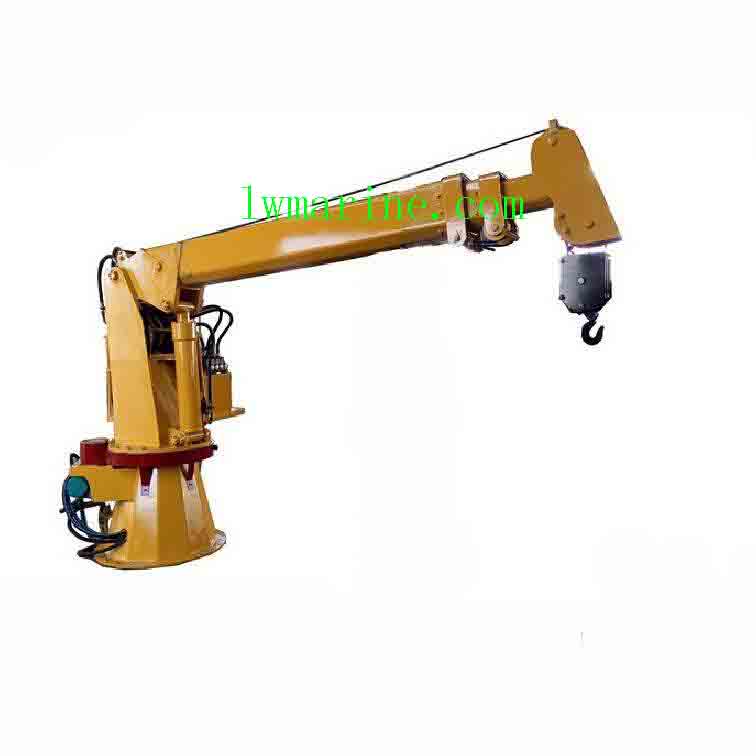

Ship Hydraulic Slewing Crane
Application
The Ship Hydraulic Slewing Crane is a heavy-duty lifting solution designed for precision load handling, featuring full 360° rotation for optimal positioning. With a 4,082kg maximum capacity, it is ideal for:
-
Industrial machinery installation
-
Shipyard and port operations
-
Offshore platform maintenance
-
Construction site material handling
Key Features:
✔ Full 360° Slewing: Hydraulic motor-driven rotation for precise load placement
✔ Heavy-Duty Capacity: 40kN (4,082kg) lifting capability
✔ Marine & Industrial Use: Robust design for demanding environments
Material Options
-
Aluminum: Lightweight yet durable (ideal for mobile applications)
-
Carbon Steel: High-tensile strength for heavy loads
-
Stainless Steel: 316L grade for superior corrosion resistance
Advantages & Features
-
High-Strength Construction: Reinforced boom and base for durability
-
Quick Installation: Modular design for fast setup
-
Long Service Life: Marine-grade coatings and materials
-
Smooth Operation: Precision hydraulic controls (±5mm accuracy)
-
Safety Assurance: Dual-circuit overload protection
-
Smart Protection: Automatic cut-off at 95% capacity
-
Custom Solutions: Boom length, capacity, and control adaptations
-
Certifications: IRS, BV, LR, and other international standards
| Specifications | |
| SWL | 40KN |
| Motor Power | 25kW (S6-40%) |
| Power source | AC380V/50Hz |
| Protect Class | IP56 |
| Insulate Class | F |
| Working Radius | 5.5m |
| Hoisting Speed | 15m/min |
| Hoisting Height | 25m |
| Slewing Speed | ~0.5r/min |
| Slewing Angle | 360° |
| Tirm | ≤2° |
| Heel | ≤5° |
The description/sizes may be different with goods, please check with us when order.
