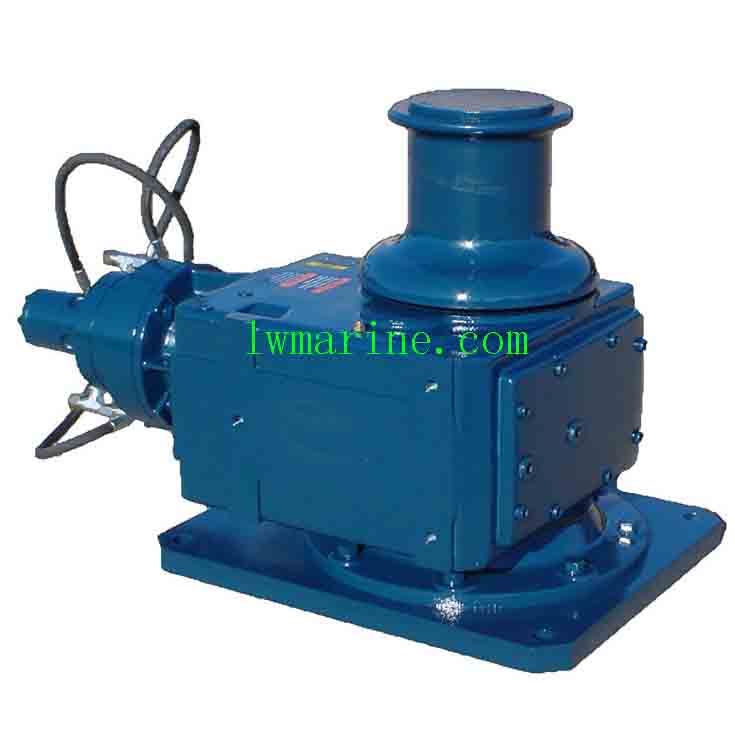

Ship Hydraulic Capstan – Professional Line Handling System
High-Performance Hydraulic Capstan for Marine Operations
The Ship Hydraulic Capstan is a versatile deck machinery solution designed for efficient mooring, anchoring, and load handling. Available in vertical and horizontal configurations, this capstan delivers smooth, powerful operation through hydraulic power with precise stepless speed control.
Key Applications
✔ Vessel Mooring – Secure docking operations
✔ Anchor Handling – Chain/rope management
✔ Towing Operations – Auxiliary line control
✔ Cargo Handling – Load positioning assistance
Technical Specifications
Configuration Options
✔ Vertical Capstan
-
Deck-mounted drum with below-deck drive
-
360° line access
-
Ideal for multi-directional line handling
✔ Horizontal Capstan
-
Full above-deck installation
-
Optimized for chain handling
-
Space-saving design
Core Features
✔ Hydraulic Drive System – Stepless speed control
✔ Heavy-Duty Construction – Cast steel/316L stainless steel
✔ Precision Control – ±2% speed accuracy
✔ Marine-Grade Protection – Saltwater-resistant coatings
Performance Advantages
-
High Torque Output – Consistent power under load
-
Low Maintenance – Easy-access service points
-
Flexible Installation – Adapts to deck space constraints
-
Safety Systems – Automatic brake and overload protection
Certifications & Compliance
✔ BV, LR, RINA Approved
✔ SOLAS Safety Standards
✔ IMO Marine Equipment Requirements
Parameters:
| Working | Warping | Warping | Chain Dia | Working | Wire Dia.(mm) | Motor |
| Speed(m/min) | Load(KN) | Speed(m/min) | (mm) | Load(KN) | Power(kw) | |
| ≥12 | 5 | ≥10 | Φ11/14 | 5.9/7.4 | Φ11 | 4 |
| ≥12 | 8 | ≥10 | Φ16/17.5 | 10.9/13.0 | Φ13 | 7.5 |
| ≥12 | 10 | ≥10 | Φ19/22 | 15.3/20.6 | Φ13 | 11 |
| ≥9 | 20 | ≥8.5 | Φ24/26 | 24.5/28.7 | Φ15 | 11 |
| ≥9 | 30 | ≥8.5 | Φ28/30 | 33.3/38.3 | Φ17.5 | 15 |
| ≥9 | 30 | ≥8.5 | Φ32/34/36 | 43.5/49.1/55.1 | Φ17.5 | 18.5 |
| ≥9 | 50 | ≥8.5 | Φ38/40/42 | 61.4/68.0/75.0 | Φ20.5 | 30 |
| ≥9 | 50 | ≥8 | Φ44/46/48 | 82.3/89.9/97.9 | Φ26 | 37 |
| ≥9 | 60 | ≥8 | Φ50/52/54 | 106.3/114.9/123.9 | Φ26 | 45 |
| ≥9 | 60 | ≥8 | Φ56/58/60 | 133.3/143/153 | Φ26 | 55 |
The description/sizes may be different with goods, please check with us when order.
