ZDR-0.2 Ship Electric & Steam Heating Water Tank | Marine Hot Water System for Ships & Offshore Platforms
Product Overview

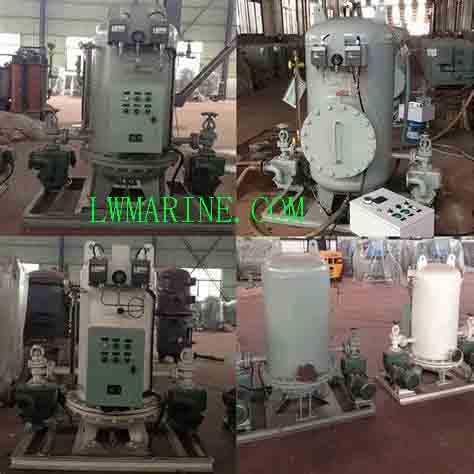

The ZDR-0.2 Ship Heating Water Tank is a versatile dual-heating marine calorifier designed to provide reliable hot water supply for crew accommodations and service facilities onboard vessels and offshore platforms. Offering both electric and steam heating options, this system ensures continuous hot water availability regardless of your vessel’s power configuration. Certified by major classification societies, it delivers efficient performance and compliance with international marine standards.
Key Applications
-
Crew accommodation hot water supply for showers, lavatories, and sanitary facilities
-
Galley and kitchen hot water systems on commercial vessels and offshore platforms
-
Dual-energy marine hot water solutions for vessels with steam system availability
-
Offshore platform accommodation services with flexible heating options
-
Marine sanitation and cleaning water heating systems
Dual Heating System Operation
🔧 Temperature Control Settings
-
Temperature Regulating Valve: Set range 50°C (low) to 60°C (high)
-
Temperature Controllers: Set range 50°C (low) to 65°C (high)
-
Safety Valve Pressure: Set to 0.42 MPa for overpressure protection
⚡ Electric Heating Operation
-
Automatic activation when temperature drops below 50°C
-
Automatic shutoff when temperature reaches 65°C
-
24 kW heating capacity for rapid water heating
🔥 Steam Heating Operation
-
Automatic activation when temperature drops below 50°C
-
Automatic shutoff when temperature reaches 60°C
-
0.3 MPa steam pressure requirement
-
45 kg/h steam consumption at full capacity
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | ZDR-0.2 |
| Capacity | 0.2 m³ |
| Working Pressure | 0.4 MPa (at 60°C) |
| Design Pressure | 0.44 MPa |
| Test Pressure | 0.68 MPa |
| Safety Valve Setting | 0.42 MPa |
| Water Inlet Temperature | 15°C |
| Water Outlet Temperature | 65°C |
| Working Temperature Range | 0~65°C |
| Design Temperature | 80°C |
| Steam Pressure Requirement | 0.3 MPa |
| Heated Water Capacity (Steam) | 450 kg/h |
| Steam Consumption | 45 kg/h |
| Heated Water Capacity (Electric) | 360 kg/h |
| Electrical Heating Power | 24 kW |
| Electrical Supply | AC380V/50Hz/3φ or AC440V/60Hz/3φ |
| Thermal Insulation Thickness | 40 mm |
| Galvanized Steel Thickness | 0.7 mm |
The description/sizes may be different with goods, please check with us when order.
