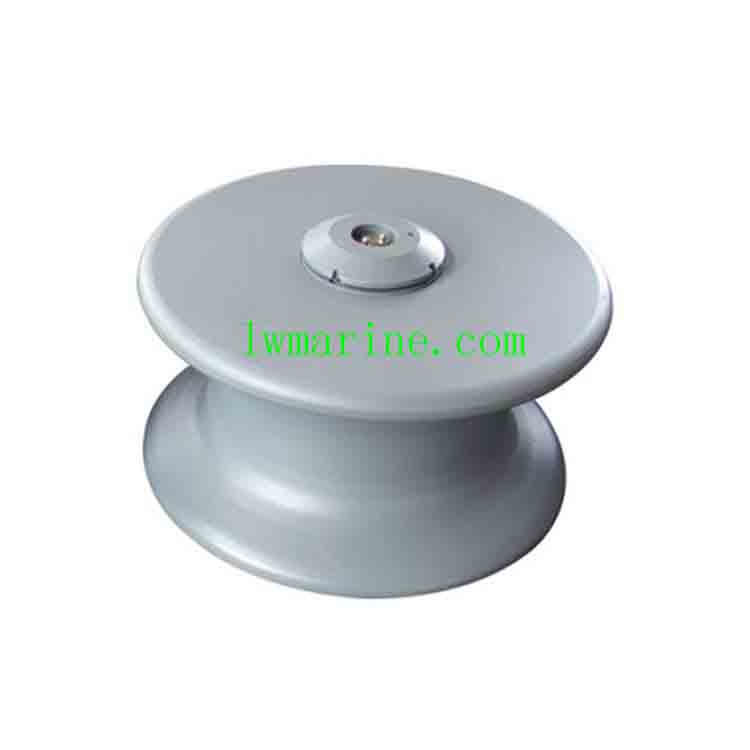

NS2585 Marine Ship Fairlead Roller: High-Performance Mooring Rope Guidance System
The NS2585 Ship Fairlead Roller is a premium-quality marine roller specifically designed for fairlead applications on marine vessels. This essential component plays a crucial role in guiding the direction of mooring ropes, ensuring safe and efficient docking and anchoring operations for ships and boats. With its high breaking load capacity for tightwire, the NS2585 Fairlead Roller is engineered to withstand the rigors of marine environments, providing reliable performance under even the most demanding conditions.
Key Features of the NS2585 Marine Fairlead Roller:
- High Breaking Load Capacity: Designed to handle substantial tension, ensuring the roller can withstand the force exerted by mooring ropes without failure.
- Compact Structure: Its streamlined design minimizes space requirements while maintaining structural integrity, making it ideal for installation in tight spaces on ships.
- Smooth Surface Finish: The roller’s surface is meticulously finished to reduce friction, facilitating smooth rope movement and minimizing wear and tear on both the rope and the roller itself.
- Standardized Production: Manufactured according to strict industry standards, ensuring consistent quality and compatibility with a wide range of marine equipment.
- Stable Performance: Built to deliver reliable performance over extended periods, even in harsh marine conditions, reducing maintenance needs and downtime.
We offer both standard NS2585 Fairlead Rollers and customized solutions tailored to meet specific customer requirements. Whether you need a roller with a particular diameter, material, or finish, our team can work with you to create a product that perfectly fits your needs.
If you’re interested in enhancing your marine vessel’s mooring system with our high-quality NS2585 Fairlead Roller, please don’t hesitate to contact us. Our knowledgeable team is ready to assist you with any inquiries or orders.
Specifications:
- Model Type: NS2585 Fairlead Roller
- Material: High-grade Cast Iron for durability and strength
- Standard Compliance: NS2585
- Roller Diameter Range: 150mm to 450mm
- Applicable Rope Diameter Range: 32mm to 85mm
- Certifications: CCS, ABS, BV, LR, NK, RINA, ensuring compliance with international marine safety standards
Drawing of NS2585 Fairlead Roller (Unit: mm)
| Roller Diameter (D) | Max. Diameter of Applicable Rope (Synthetic Fiber/Hemp/Steel GB1102) | Size Parameters (d0, d7, H, s, t, k) | Weight (kg) |
|---|---|---|---|
| 150 | 32/45/17.0 (Steel: 1550N/mm²) | d0: 15.0, d7: 240, H: 90, s: 79, t: 154, k: 5 | 24.8 |
| 200 | 40/55/22.5 | d0: 19.5, d7: 310, H: 115, s: 99, t: 186, k: 5 | 49.3 |
| 250 | 45/65/24.0 | d0: 24.0, d7: 380, H: 135, s: 119, t: 230, k: 6 | 92.0 |
| 300 | 50/70/30.0 | d0: 28.0, d7: 440, H: 155, s: 129, t: 255, k: 7 | 127.0 |
| 350 | 55/75/37.5 | d0: 34.5, d7: 500, H: 175, s: 149, t: 271, k: 7 | 168.0 |
| 400 | 65/85/41.0 | d0: 39.0, d7: 560, H: 185, s: 159, t: 307, k: 7 | 252.5 |
| 450 | 80/-/44.5 | d0: 43.0, d7: 630, H: 210, s: 178, t: 316, k: 7 | 310.0 |
FAQs:
- Q: What is the maximum breaking load capacity of the NS2585 Ship Fairlead Roller?
- A: The NS2585 Fairlead Roller is designed with a high breaking load capacity to handle substantial tension, ensuring reliable performance even under extreme conditions. The exact capacity varies based on the roller diameter and rope type, but it is engineered to withstand the rigors of marine applications.
- Q: Can the NS2585 Fairlead Roller be customized for specific ship requirements?
- A: Yes, we offer customized solutions for the NS2585 Fairlead Roller to meet specific customer requirements. Whether you need a roller with a particular diameter, material, or finish, our team can work with you to create a product that perfectly fits your needs.
- Q: What certifications does the NS2585 Fairlead Roller have?
- A: The NS2585 Fairlead Roller is certified by multiple international marine safety organizations, including CCS, ABS, BV, LR, NK, and RINA. These certifications ensure that the roller meets the highest standards of quality and safety for marine applications.
- Q: How do I choose the right diameter for the NS2585 Fairlead Roller based on my rope size?
- A: The appropriate diameter for the NS2585 Fairlead Roller depends on the diameter of the mooring rope you intend to use. Refer to our specification table to find the recommended roller diameter for your specific rope size, ensuring optimal performance and safety.
- Q: What is the maintenance requirement for the NS2585 Ship Fairlead Roller?
- A: The NS2585 Fairlead Roller is designed for minimal maintenance, thanks to its durable cast iron construction and smooth surface finish. Regular inspection for wear and tear and lubrication of moving parts (if necessary) will help ensure long-lasting performance. However, specific maintenance requirements may vary based on usage conditions and frequency.
Please Note: The description might be incorrect, please contact us for confirmation.
