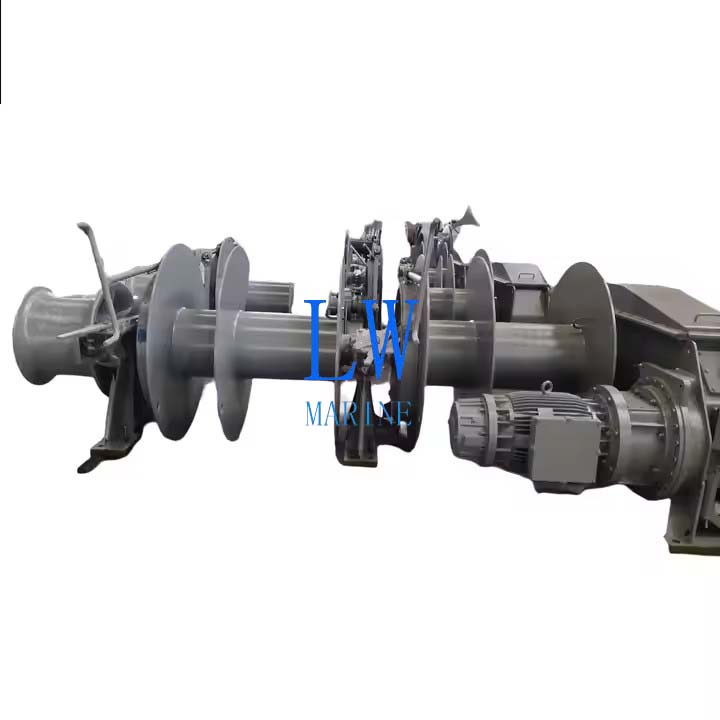

Ship Electric Winches – High-Performance Load Handling Solution
Product Overview
Our Ship Electric Winches provides reliable, high-efficiency load management for anchoring, mooring, towing, and cargo operations. Designed for saltwater durability, they feature stainless steel/aluminum construction, sealed motors, and advanced safety systems. Available in single-drum, double-drum, or custom configurations, with remote/local control options.
Key Features & Benefits
✔ Corrosion-Resistant Build – Stainless steel / aluminum / carbon steel housing
✔ Smart Control – Remote operation (wired/wireless) + auto-tensioning
✔ Safety Systems – Automatic brakes, overload protection, safety clutches
✔ Modular Design – Warping heads, gypsies, or hybrid drives (hydraulic/electric)
✔ Certified Reliability – ABS, BV, DNV, CCS, LR, NK, IRS compliant
Technical Specifications
| Parameter | Specification |
|---|---|
| Drum Options | Single / Double / Multi-drum |
| Motor Type | Standard or explosion-proof (ATEX) |
| Load Capacity | 1–50 tons (customizable) |
| Control | Local + Remote (IP67 waterproof) |
| Special Features | Rope length/speed sensors, auto-tensioning |
Parameters:
| Rated Pull | Drum Capacity | Rated Speed | Motor Power | |
| T | kN | φmm*m | m/min | kW |
| 0.5 | 5 | φ8*100 | ≥12 | 3/1.2 |
| 1 | 10 | φ10*150 | ≥12 | 4.3/1.7 |
| 2 | 20 | φ15*150 | ≥12 | 8.5/3.5 |
| 3 | 30 | φ17*150 | ≥12 | 11/11/7.5 |
| 4 | 40 | φ8*150 | ≥15 | 16/16/11 |
| 5 | 50 | φ20.5*180 | ≥15 | 22/22/16 |
| 7.5 | 75 | φ26*200 | ≥15 | 30/30/22 |
| 8 | 80 | φ26*200 | ≥15 | 30/30/22 |
| 10 | 100 | φ30*200 | ≥15 | 45/45/30 |
| 15 | 150 | φ30*200 | ≥15 | 45/45/30 |
| 16 | 160 | φ32*250 | ≥15 | 60/60/45 |
| 20 | 200 | φ40*250 | ≥9.6 | 45/45/30 |
| 25 | 250 | φ44*250 | ≥9.6 | 60/60/45 |
| 31.5 | 315 | φ52*250 | ≥7.8 | 60/60/45 |
| 40 | 400 | φ56*250 | ≥7.8 | 85/85/64 |
| 45 | 450 | φ56*250 | ≥6 | 85/85/64 |
| 50 | 500 | φ58*250 | ≥7.8 | 85/85/64 |
The description/sizes may be different with goods, please check with us when order.
