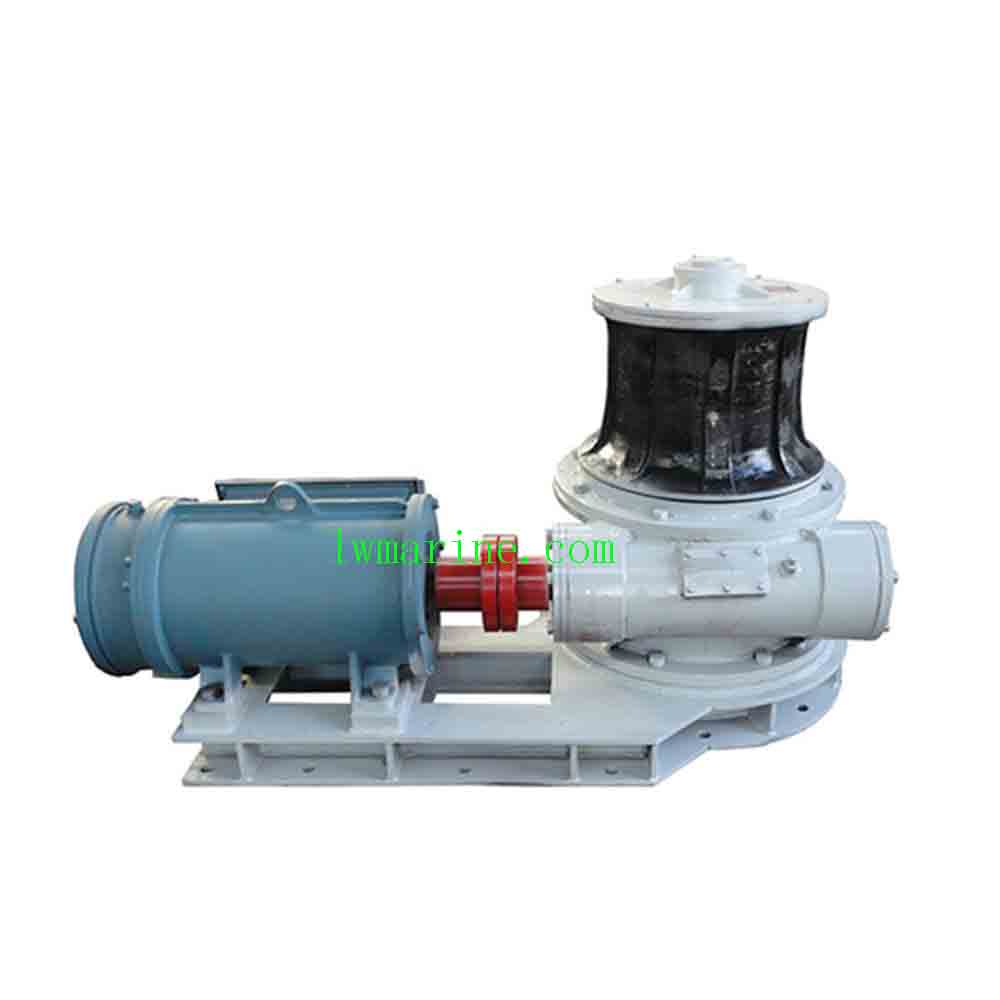

Ship Electric Horizontal Capstan

Ship Electric Horizontal Capstan

Certificate: CCS, GL and BV certificate.
Delivery Time: 15days
Place of Origin: China
Packing Details: Export standard packaging.

Category:

Ship Electric Horizontal Capstan

Overview

A Ship Electric Horizontal Capstan is a motor-powered winching device mounted horizontally on a ship’s deck or marine structure. Functionally similar to hydraulic horizontal capstans, it operates using electric power and typically incorporates a brake system for precise cable/rope tension control. Some models also feature a clutch mechanism for quick drum engagement and release. This versatile equipment is widely used in marine operations such as anchoring, mooring, and towing. While commonly installed on large vessels, it is equally suitable for smaller boats and structures requiring heavy-load handling.

Key Advantages & Features

  1. Compact & Robust – Space-efficient yet high-strength construction.

  2. Smooth Operation – Reliable performance with a polished design.

  3. Corrosion-Resistant – Built for longevity in harsh marine environments.

  4. Dual Control Options – Operable locally or via remote control.

  5. Easy Installation & Maintenance – User-friendly setup and upkeep.

  6. Optional Gypsy Wheel – Configurable with or without a chain-winding wheel.

  7. Brake & Clutch Flexibility – Choice of manual or hydraulic systems.

  8. Horizontal Mounting – Ideal for deck layouts requiring low-profile equipment.

  9. Customizable Solutions – Adaptable to specific operational demands.

  10. Industry Certifications – Compliant with BV, LR, RINA, and other marine standards.

Parameters:

Mooring Load Wire Overall size Nom.Speed Capstan Power Speed
（KN） Dia（mm） L×B×H ≥（m/min） Dia(mm) （KW） （r/min）
10 φ13 1520×745×600 18 φ300 6/2.5 1350/390
15 φ13 1400×600×900 18 φ300 7.5/7.5/5 1400/665/300
20 φ13 1550×700×1000 18 φ340 11/11/7.5 1400/665/300
30 φ18 1630×750×1010 18 φ370 12.5/12.5/5.7 1437/689/300
40 φ20 1680×920×1000 18 φ340 16/16/11 1400/665/300
50 φ20 1860×920×1000 18 φ340 22/22/16 1400/665/335
70 φ24 2200×1055×1200 15 φ450 30/30/22 1400/665/300
80 φ30 2300×1125×1300 15 φ510 30/30/22 1420/680/320
100 φ30 2500×1150×1300 15 φ540 45/45/30 1420/680/320
120 φ32 2800×1350×1300 15 φ570 45/45/30 1420/680/320
160 φ36 2870×1920×1415 12 φ760 45/45/30 1420/680/320
200 φ40 2830×1960×1600 9 φ700 45/45/30 1420/680/320

The description/sizes may be different with goods, please check with us when order.
