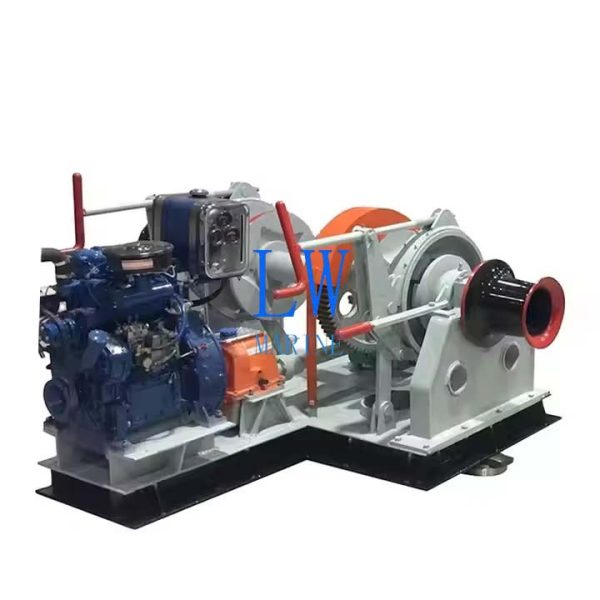

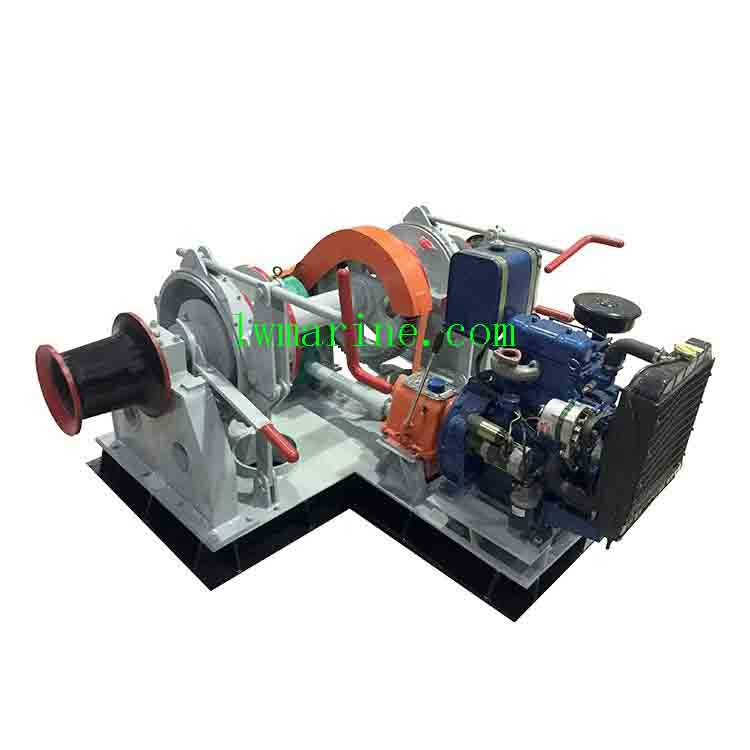

95mm Ship diesel windlasses
Heavy-Duty Marine Anchoring System
Application
The 95mm ship diesel windlasses are a professional-grade anchoring solution designed for large commercial vessels operating in extreme marine conditions. Powered by a high-torque diesel engine, this system provides unmatched reliability for handling heavy 95mm anchor chains.
Key Differentiators vs Electric/Hydraulic Systems:
-
Superior power output for extreme loads
-
Enhanced structural stability
-
Optimal performance in severe weather conditions
Core Features:
-
Dual gypsy wheels for simultaneous operations
-
Closed gearbox for maximum safety
-
Manual brake and clutch system
Material Specifications
-
Main frame: Reinforced cast steel
-
Critical components: Marine-grade 316L stainless steel
Technical Advantages
✔ Dual-Function Capability
-
Double gypsy configuration
-
Integrated double warping heads
✔ Exceptional Durability
-
Corrosion-resistant construction
-
Heavy-duty 95mm chain capacity
✔ Operational Excellence
-
Local and remote control options
-
Simplified maintenance design
✔ Safety & Reliability
-
Protected gearbox enclosure
-
Fail-safe manual controls
✔ Certified Performance
-
BV, LR, RINA approved
✔ Custom Engineering
-
Vessel-specific configurations available
| Main Technical Data Of Windlass | |||||
| Chain Dia.(AM3) | Working Speed | Warping Load | Working Load | Supporting Load | Motor Power |
| mm | m/min | KN | KN | KN | kW |
| 95 | ≥9 | 200 | 428.7 | 2898 | 130 |
The description/sizes may be different with goods, please check with us when order.
