Ship Deck Scaler Accessory

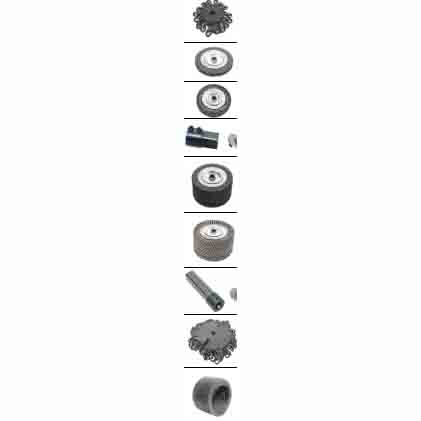

| IMPA Code/The reference model | Picture | Product Description and Configuration | Remark | NG/kg | MG/kg | MEAS:cm |
|---|---|---|---|---|---|---|
| 591234 / 591237 (040-016/ 040-0163) | [Image omitted] | TD-400E / TD-200E, TD-400A / TD-200A, DS-400E / DS-200E, DS-400A / DS-200A Universal Chain Drum, Outer diameter 225mm, 25mm square hole, 8mm chain, surface electrophoresis, a set of 3 | 2.4*3= 7.2kg/set | 32.5*24*17 | ||
| 591801 (040-0158) | [Image omitted] | TD-400E / TD-400A / DS-400E / DS-400A Universal Curly Wire Brush, Outer diameter 228mm, 25mm square hole, 0.5mm steel wire | Manganese Steel | 1.8 | ||
| SUS 304 | ||||||
| 591802 (040-0202) | [Image omitted] | TD-400E / TD-400A / DS-400E / DS-400A Universal Curly Wire Brush, Outer diameter 228mm, 25mm square hole, 0.5mm steel wire | Manganese Steel | 2.8 | ||
| SUS 304 | ||||||
| 040-0157+ 040-0154 | [Image omitted] | TD-400E / TD-400A / DS-400E / DS-400A Universal Mounting Spindle Set for Working Components | ||||
| 591803 (120-0158) | [Image omitted] | TD-200E / TD-200A / DS-200E / DS-200A Universal Curly Wire Brush, Outer diameter 228mm, 25mm square hole, 0.5 mm steel wire | Manganese Steel | 5.6 | ||
| SUS 304 | ||||||
| 591804 (120-0159) | [Image omitted] | TD-200E / TD-200A / DS-200E / DS-200A Universal Twisted Wire Brush, Outer diameter 228mm, 25mm square hole, 0.5 mm steel wire | Manganese Steel | 9.2 | ||
| SUS 304 | ||||||
| 120-0157 + 120-0154 | [Image omitted] | TD-200E / TD-200A / DS-200E / DS-200A Universal Mounting Spindle Set for Working Components | 0.73 | |||
| 591209 (200-0156) | [Image omitted] | TD-2000E / TD-2000A / DS-2000E / DS-2000A Universal Chain Drum, Outer diameter 315mm, 22mm hexagonal hole, 7mm chain, surface electrophoresis, a set of 4 | 4.7*4= 18.8kg/set | 29*25.5*25.5 | ||
| 591807 (200-0158) | [Image omitted] | TD-2000E / TD-2000A / DS-2000E / DS-2000A Universal Curly Wire Brush, Outer diameter 285mm, 22mm hexagonal hole, 0.5 mm steel wire | Manganese Steel | 12.8 | ||
| SUS 304 | ||||||
| 591807C | [Image omitted] | TD-2000E / TD-2000A / DS-2000E / DS-2000A Universal Twisted Wire Brush, Outer diameter 285mm, 22mm hexagonal hole, 0.5 mm steel wire | Manganese Steel | 24 | ||
| 591818 (200-2200) | [Image omitted] | TD-2000E / TD-2000A / DS-2000E / DS-2000A Universal Chain Drum Spindle Kit | 1.365 | |||
| 591808 (200-0170) | [Image omitted] | TD-2000E / TD-2000A / DS-2000E / DS-2000A Universal 17mm Bearing Group | 0.36 | |||
| 591809 (200-0186) | [Image omitted] | TD-2000E / TD-2000A / DS-2000E / DS-2000A Universal 20mm Bearing Group | 0.593 | |||
| TD-PL09538 | [Image omitted] | TD-2000E / TD-2000A / DS-2000E / DS-2000A Universal Pulley Kit | 1 | |||
| TD-PL13220 (200-2220) | [Image omitted] | TD-2000E / TD-2000A / DS-2000E / DS-2000A Universal Chain Drum Pulley Kit | 2.26 | |||
| TD-PG0377 (200-0125) | [Image omitted] | Universal Sealing Set Used for the joint between the motor and the decelerating head, consisting of two #2507 Special Flat Gaskets | 0.15 |
Note: The description may be different with the product, please contact us for quotation.
