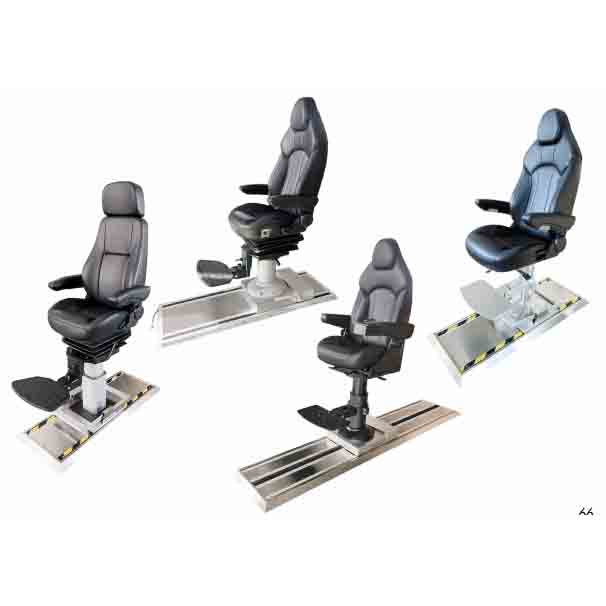

Ship Chair Deck Rail
- The main rail is made of anodized aluminum alloy profile.
- Built with wheel – type double – rail sliding and multi – point positioning to control seat position.
- The seat can move within the effective travel range of the deck rail.
- Deck rail length is customizable.
- Can customize electrically – operated deck rail.
TX801462 (For flush mounting)
Mounting Hole Dimensions (mm): 442, 462, 23, 35
| MODEL NO. | N.W (KG) | G.W (KG) | DIMENSION (MM) |
|---|---|---|---|
| TX801462 – 1000 | 40 | 50 | 2305001040 |
| TX801462 – 1200 | 46 | 57.5 | 2305001240 |
| TX801462 – 1500 | 55 | 68.5 | 2305001540 |
| TX801462 – 2000 | 71 | 88 | 2305002040 |
TX802485 (For mounting on deck)
Mounting Hole Dimensions (mm): 342, 485, 60, 40
| MODEL NO. | N.W (KG) | G.W (KG) | DIMENSION (MM) |
|---|---|---|---|
| TX802485 – 1000 | 33 | 42 | 2305201040 |
| TX802485 – 1200 | 38.5 | 51 | 2305201240 |
| TX802485 – 1500 | 45.5 | 60 | 2305201540 |
| TX802485 – 2000 | 60 | 72 | 2305202040 |
Attention please: The description might be incorrect, please contact us for confirmation.
