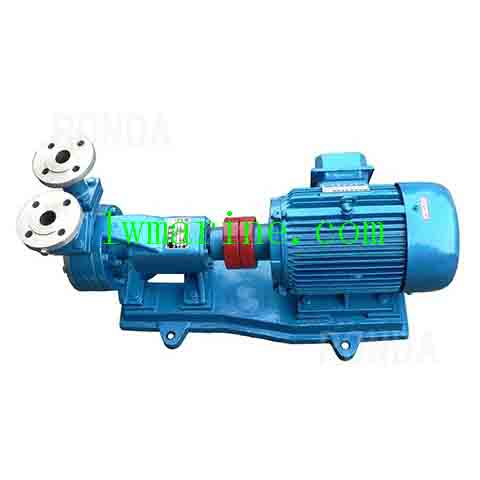

W Ship Centrifugal Single-Stage Vortex Pump for Efficient Liquid Transfer
The W Ship Centrifugal Horizontal Single-Stage Vortex Pump is a robust and reliable cantilevered vortex pump designed for a wide range of liquid transfer applications. This pump is expertly engineered to handle liquids with temperatures ranging from -20℃ to +80℃ and viscosities not exceeding 5°E, ensuring smooth and efficient operation without the presence of solid particles. The flow components of the pump are available in three material options: HT200, Cr18Ni12Mo2Ti, and aluminum cast iron, denoted by H, J, and M codes respectively, to cater to different corrosive environments. The pump features both soft packing seals and mechanical seals for enhanced sealing performance. Additionally, the pump rotates counterclockwise when viewed from the motor end.
Key Applications:
- Marine Liquid Transfer: Ideal for transferring seawater, freshwater, and other non-corrosive or corrosive liquids onboard ships and vessels.
- Industrial Process Fluids: Suitable for handling various process fluids in industrial settings, such as cooling water, chemical solutions, and more, within the specified temperature and viscosity range.
- Temperature-Controlled Liquid Handling: Capable of transferring liquids at both low and high temperatures, making it versatile for different operational requirements.
- Low-Viscosity Fluid Pumping: Efficiently pumps low-viscosity fluids, ensuring consistent flow rates and minimal energy consumption.
- Corrosion-Resistant Liquid Transfer: With multiple material options for flow components, the pump can handle corrosive liquids, extending its service life and reducing maintenance costs.
Model Explanation:
For instance, take the model 32W-30:
- 32: Represents the inlet and outlet diameter of 32mm, indicating the pump’s flow capacity.
- W: Signifies that it is a vortex pump, known for its high efficiency and reliability in liquid transfer.
- 30: Indicates that the pump head value at the design point is 30m, reflecting its pressure-generating capability.
Main Technical Parameters:
| Series Name | W |
|---|---|
| Product Name | Horizontal Single-Stage Vortex Pump |
| Product Model | Marine Pump HS-W01 |
| Feature | Single-stage, cantilevered design; pump and motor installed on a common base plate |
| Capacity (m³/h) | 0.36-16.9 |
| Head (m) | 5-150 |
| Speed (r/min) | 2900 |
| Motor Power (kW) | 0.75-18.5 |
| Application | Handling corrosive and non-corrosive liquids without suspending particles, with viscosity within 5°E |
| Medium Temperature (℃) | -20 to +80 |
| Certification | CCS, BV, etc. (ensuring compliance with international standards) |
Performance Parameters (50HZ/2900RPM & 60HZ/3500RPM):
| Type | Capacity (m³/h) | Head (m) | Power (kW) | Capacity (m³/h, 60HZ) | Head (m, 60HZ) | Power (kW, 60HZ) | Impeller Dia. (mm) | (NPSH)r (m) | Efficiency (%) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| 15W-15 | 0.2/0.36/0.45 | 18/15/12 | 0.75/0.4/0.5 | 0.2/0.27/0.34 | 25.9/21.6/17.3 | 1.1/2.3/2.8 | 65 | 2/1.5/1 | 7/9/10 | 11/10/9 |
| 15W-50 | 0.2/0.36/0.45 | 65/50/40 | 0.75/0.4/0.5 | 0.2/0.27/0.34 | 93.6/72/57.6 | 1.1/2.8/3.4 | 100 | 2.4/2/1.8 | 8/17/16 | 12.8/17/16 |
| 20W-20 | 0.36/0.72/0.9 | 28/20/15 | 0.75/0.9/1.1 | 0.4/0.54/0.68 | 40.3/28.8/21.6 | 1.1/1.8/2.2 | 65 | 3/2.5/2 | 14/22/21 | 12/22/21 |
| … (Other models follow a similar pattern) | … | … | … | … | … | … | … | … | … | … |
FAQs:
Q1: What types of liquids can the W Ship Centrifugal Horizontal Single-Stage Vortex Pump handle?
A1: The W Marine Horizontal Single-Stage Vortex Pump is designed to handle a wide range of corrosive and non-corrosive liquids without suspending particles, with viscosities within 5°E and temperatures ranging from -20℃ to +80℃.
Q2: How do I choose the right material for the flow components of the pump?
A2: The choice of material for the flow components depends on the corrosive nature of the liquid being pumped. HT200 is suitable for non-corrosive liquids, while Cr18Ni12Mo2Ti and aluminum cast iron offer enhanced corrosion resistance for more aggressive environments.
Q3: Can the pump operate at different speeds?
A3: Yes, the pump is designed to operate at both 50HZ/2900RPM and 60HZ/3500RPM, providing flexibility to suit different operational requirements and power supplies.
Q4: What certifications does the W Ship Centrifugal Horizontal Single-Stage Vortex Pump have?
A4: The pump is certified by CCS, BV, and other relevant authorities, ensuring compliance with international standards and providing assurance of its quality and reliability.
Q5: How do I determine the appropriate pump model for my application?
A5: To determine the appropriate pump model, consider factors such as the required flow rate, head, liquid temperature, viscosity, and corrosive nature. Our technical team can assist you in selecting the most suitable model based on your specific requirements.
Please Note: The description might be incorrect, please contact us for confirmation.
