Ship Ballast Water Management Pump | High-Capacity Ballast Transfer Systems
Product Overview

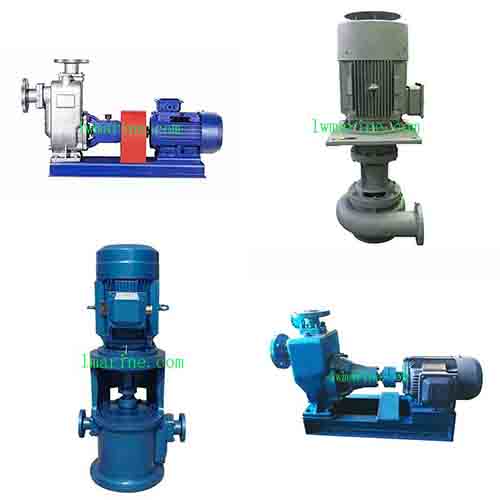

Ship Ballast Water Pump is specialized pumping systems designed for efficient filling, transfer, and discharge of ballast water in vessel stability operations. These high-capacity, low-head pumps enable precise control of vessel trim, stability, and draft through controlled water transfer between ballast tanks and seawater systems. Engineered for bidirectional flow operation with large displacement capabilities, they form the core of modern ballast water management systems ensuring vessel safety and operational efficiency.
System Configuration & Requirements
-
Multiple Pump Installation: Minimum two ballast pumps per vessel for redundancy
-
Rapid Transfer Capability: Largest tank evacuation within 2-2.5 hours
-
Complete System Operation: Full vessel ballast management within 6-8 hours
-
Valve Control System: Integrated transfer valve boxes for directional flow control
-
Centrifugal Pump Design: High-specific speed pumps for optimal performance
-
Bottom Mounting: Installed at vessel base for natural liquid column advantage
Technical Specifications
-
Flow Characteristics: High displacement, low pressure operation
-
Pressure Range: 0-0.4 MPa operational pressure
-
Vacuum Requirements: -0.05-0 MPa suction performance
-
Bidirectional Flow: Designed for filling and drainage operations
-
Automation Ready: Compatible with modern ballast control systems
Ballast Operation Procedure
Filling Sequence
-
Secure pump inlet valve, activate underwater valves
-
Open outlet valves (check valve and globe valve configuration)
-
Select symmetric ballast tank intake valves
-
Monitor pressure gauges for optimal operation range
-
Verify tank filling through overflow vent observation
Drainage Protocol
-
Open pump inlet and outlet valves simultaneously
-
Activate overboard discharge valves
-
Select symmetric tank drainage valves
-
Monitor vacuum and pressure gauges for optimal performance
-
Identify tank emptying through pressure fluctuation indicators
-
Secure all valves upon operation completion
Design Features & Benefits
-
Large Capacity Design: Optimized for rapid ballast transfer
-
Low Head Operation: Energy-efficient performance characteristics
-
Corrosion Resistance: Marine-grade materials for seawater operation
-
Dry Run Protection: Designed for reliable operation with liquid column support
-
Maintenance Access: Designed for easy service and inspection
-
System Integration: Compatible with ballast water treatment systems
The description/sizes may be different with goods, please check with us when order.
