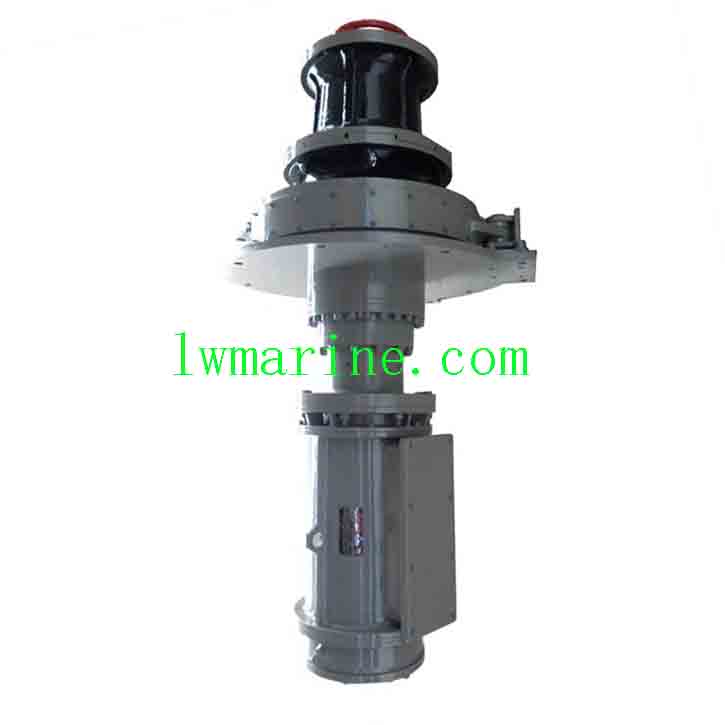

Ship Anchor Capstan – Professional Anchor Handling System
The Ship Anchor Capstan is a heavy-duty deck machinery solution combining anchor gypsy wheel and mooring capabilities in a single unit. Available in electric and hydraulic configurations, this system delivers exceptional performance for secure vessel anchoring and mooring.
Technical Specifications
| Type | Electric Anchor Capstan | Hydraulic Anchor Capstan |
|---|---|---|
| Power Source | Ship’s electrical system | Independent hydraulic power |
| Speed Control | 1/2/3 fixed speeds | Stepless variable speed |
| Max Capacity | Up to 75 kN | Up to 400 kN |
| Best For | Medium vessels | Heavy-duty operations |
Mechanical Features
✔ Dual-Function Design:
-
Gypsy wheel for chain handling (14-120mm)
-
Optional capstan head for rope mooring
✔ Drive Systems:
-
Electric motors (7.5-55 kW)
-
Hydraulic motors (15-90 kW)
-
Heavy-duty gearbox
✔ Operation Modes:
-
Manual hand wheel override
-
Local/remote control
-
Bridge integration available
Main Specification
| Chain Diameter (mm) | Anchor Speed (m/min) | Warping load (KN) | Warping Speed (m/min) | Working load (KN) | Motor Power (KW) |
| φ12.5 | ≥9 | 5 | ≥9 | 6.6 | 2.2/0.75 |
| φ14 | ≥9 | 6 | ≥9 | 8.3 | 2.2/0.75 |
| φ16 | ≥9 | 8 | ≥9 | 10.9 | 2.2/0.75 |
| φ17.5 | ≥9 | 10 | ≥9 | 13.0/14.6 | 3/1.3 |
| φ22 | ≥9 | 15 | ≥9 | 20.6/23.0 | 6/2.5 |
| φ24 | ≥9 | 20 | ≥9 | 24.5/27.4 | 8.5/3.5 |
| φ28 | ≥9 | 25 | ≥9 | 33.3/37.2 | 8.5/3.5 |
| φ30 | ≥9 | 30 | ≥9 | 38.3/42.8 | 11/11/7.5 |
| φ36 | ≥9 | 40 | ≥9 | 55.1/61.6 | 16/16/11 |
| φ38 | ≥9 | 50 | ≥9 | 61.4/68.9 | 16/16/11 |
| φ40 | ≥9 | 60 | ≥9 | 68.0/76.0 | 22/22/16 |
| φ44 | ≥9 | 70 | ≥9 | 82.3/92.0 | 22/22/16 |
| φ46 | ≥9 | 80 | ≥9 | 89.9/100.5 | 30/30/22 |
| φ48 | ≥9 | 80 | ≥9 | 97.5/100.5 | 30/30/22 |
| φ50 | ≥9 | 90 | ≥9 | 106.3/118.8 | 30/30/22 |
| φ52 | ≥9 | 100 | ≥9 | 114.9/128.4 | 30/30/22 |
The description/sizes may be different with goods, please check with us when order.
