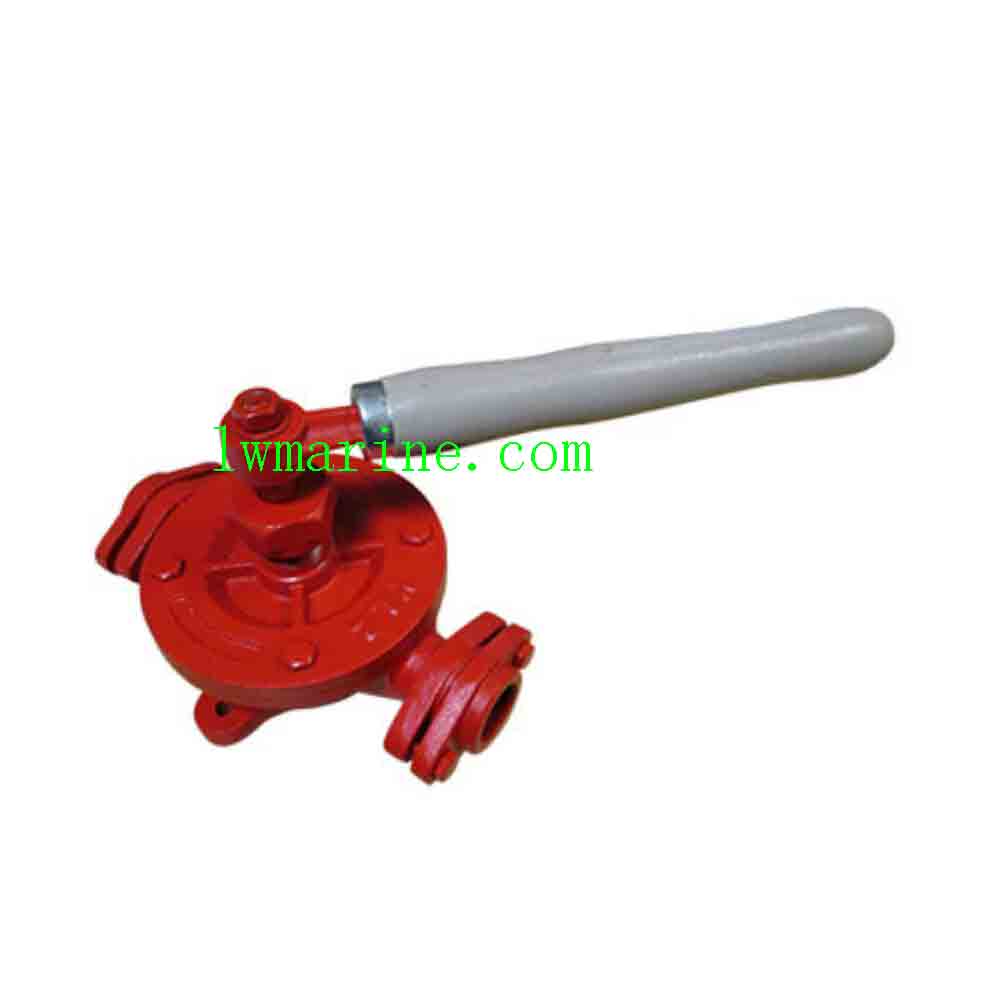

CYL Series Semi-Rotary Hand Piston Pump for Marine – Manual Fluid Transfer Solutions
Product Overview
The CYL Series Marine Semi-Rotary Hand Piston Pump provides reliable manual fluid transfer for water, gasoline, kerosene, and other non-corrosive liquids compatible with iron and copper components. Designed for applications where power sources are unavailable or impractical, this compact hand-operated pump features an elegant design with robust construction and user-friendly operation. Ideal for marine, industrial, and emergency use, it delivers dependable performance for transferring clean liquids without solid particles or fibrous materials at temperatures below 60°C.
Model Identification: CYL-15
-
CYL: Semi-Rotary Hand Pump Series
-
15: Inlet/Outlet Connection Diameter (mm)
Key Features & Benefits
-
Manual Operation: No external power required – ideal for emergency and remote applications
-
Compact & Portable: Lightweight design with easy transport and storage
-
Corrosion-Resistant Construction: Iron and copper materials for durability
-
User-Friendly Design: Ergonomic operation with smooth semi-rotary action
-
Reliable Performance: Consistent flow rate with minimal maintenance
-
Marine-Grade Quality: Suitable for vessel and offshore applications
-
Easy Installation: Simple integration into existing systems
Technical Performance Specifications
| Model | Flow Capacity (l/min) | Maximum Head (m) | Vacuum Height (m) | Weight (kg) |
|---|---|---|---|---|
| CYL-15 | 15 | 14 | 5 | 5.0 |
| CYL-20 | 20 | 14 | 5 | 5.5 |
| CYL-25 | 25 | 26 | 6 | 7.5 |
| CYL-32 | 28 | 26 | 6 | 9.0 |
| CYL-40 | 65 | 18 | 6.5 | 22.5 |
| CYL-50 | 105 | 18 | 6.5 | 34.5 |
Performance measured at 50 reciprocations per minute
Typical Applications
-
Marine vessel emergency bilge pumping
-
Fuel transfer and sampling operations
-
Emergency water supply and transfer
-
Laboratory and testing fluid handling
-
Agricultural and irrigation water management
-
Vehicle and machinery fluid maintenance
-
Industrial plant auxiliary fluid transfer
-
Remote site fluid handling operations
Operation & Maintenance
-
Operating Temperature: Maximum 60°C
-
Fluid Compatibility: Water, gasoline, kerosene, and non-corrosive liquids
-
Pumping Action: Semi-rotary hand motion (50 cycles/minute for rated capacity)
-
Maintenance: Minimal maintenance required – occasional seal inspection
-
Installation: Simple pipe connection with standard fittings
The description/sizes may be different with goods, please check with us when order.
