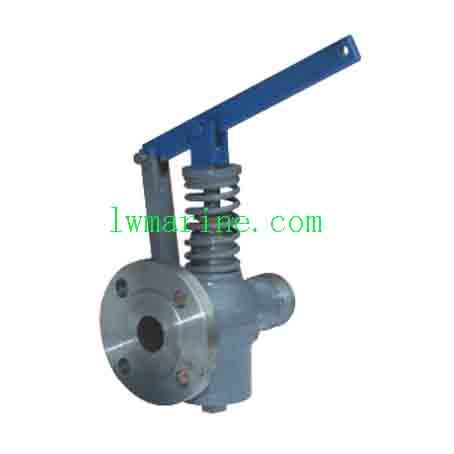

CB/T 601-92 Self-Closing Draw-Off Valve – Automatic Shutoff Valve for Marine Fluid Sampling & Drain Applications
Product Overview
The CB/T 601-92 Self-Closing Draw-Off Valve is a precision-engineered automatic shutoff valve specifically designed for marine fluid sampling, drainage, and bleed applications where corrosion resistance and reliable operation are critical. This self-closing safety valve ensures automatic shutoff after operation, preventing fluid loss and maintaining system integrity. Manufactured with premium corrosion-resistant materials and compliant with CB/T standards, it provides exceptional performance in demanding marine environments where internal and external corrosion protection is essential.
Key Features & Benefits
✔ Automatic Safety Operation
-
Self-closing mechanism prevents accidental fluid loss
-
Automatic shutoff after sampling or drainage completion
-
Safety lock feature prevents unauthorized operation
✔ Premium Corrosion-Resistant Materials
-
Body: High-grade cast steel for structural integrity
-
Seat & Cover: Cast aluminum bronze for superior corrosion resistance
-
Disc & Stem: Aluminum bronze for durability and smooth operation
-
Custom Materials: SS304, SS316L, and other alloys available upon request
✔ Technical Excellence
-
Pressure Rating: 0.25MPa for marine sampling applications
-
Size Options: DN25 and DN40 for various system requirements
-
Multi-Medium Compatibility: Suitable for various marine fluids
-
Standard Compliance: Meets CB/T 601-92 specifications
✔ Quality & Reliability
-
Excellent manufacturing quality with precision engineering
-
Beautiful aesthetic design with functional performance
-
Reliable operation in harsh marine environments
Technical Specifications
| Parameter | Specification |
|---|---|
| Standard | CB/T 601-92 |
| Nominal Pressure | 0.25 MPa |
| Nominal Diameter | DN25, DN40 |
| Body Material | Cast Steel |
| Seat & Cover Material | Cast Aluminum Bronze |
| Disc & Stem Material | Aluminum Bronze |
| Operation | Self-Closing Automatic |
Detailed Dimensions & Specifications
DN25 Configuration:
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| L | 136 mm | D | 105 mm |
| L1 | 183 mm | D1 | 73 mm |
| L2 | 130 mm | D2 | 56 mm |
| H | 168 mm | b | 12 mm |
| H1 | 62 mm | f | 1 mm |
| ¢ | 6 mm | n | 4 holes |
| d | 13 mm | ||
| Thread | M42×2 | Th. | |
| d1 | 39 mm | d2 | 29 mm |
DN40 Configuration:
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| L | 170 mm | D | 125 mm |
| L1 | 203 mm | D1 | 93 mm |
| L2 | 140 mm | D2 | 74 mm |
| H | 195 mm | b | 13 mm |
| H1 | 80 mm | f | 1 mm |
| ¢ | 7 mm | n | 6 holes |
| d | 15 mm |
Applications & Industries
-
Marine fluid sampling systems
-
Shipboard drainage and bleed applications
-
Offshore platform sampling points
-
Chemical and petrochemical tankers
-
Naval vessel fluid systems
-
Laboratory and testing connections
-
Emergency drainage systems
The description/sizes may be different with goods, please check with us when order.
