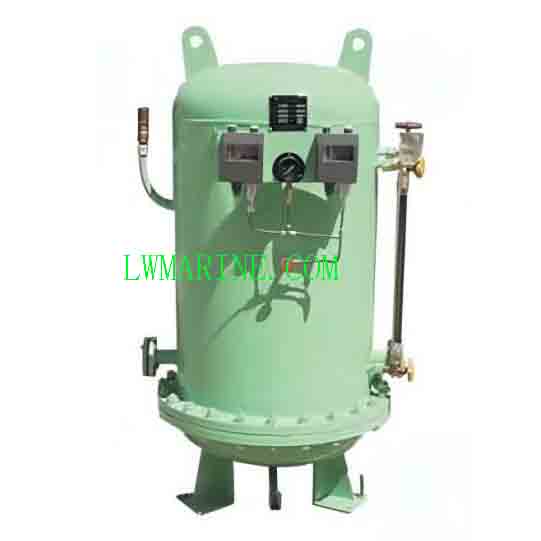

Sea Water Hydrophore

Professional Sea Water Hydrophore Unit | Marine Vessel Washing & Cleaning Pressure System

Product Overview: Heavy-Duty Sea Water Hydrophore Unit for Marine Applications

Our Sea Water Hydrophore Unit is specifically engineered for reliable vessel washing and deck cleaning operations. This robust marine pressure system features dual high-quality heavy-duty pressure pumps (with one standby unit for uninterrupted operation), complete with precision pressure gauges, gauge valves, safety valves, pressure switches, and comprehensive control systems. Designed for harsh marine environments, our seawater hydrophore system ensures consistent performance and durability where it matters most.

System Components & Operational Functions:

1. Precision Pressure Gauge

Provides accurate real-time display of internal tank pressure conditions

2. Automatic Pressure Gauge Valve

Intelligently controls pump start/stop functions
Automatically activates pumps when pressure falls below 0.4 MPa
Secures pump operation when pressure reaches optimal 0.6 MPa

3. Safety Relief Valve

Emergency pressure protection system
Automatically opens at 0.63 MPa to prevent over-pressurization
Ensures operational safety and equipment integrity

4. Visual Liquid Level Indicator

Clear visibility of internal water level conditions
Enables quick monitoring and maintenance decisions

5. Compressed Air Charge Valve

Maintains optimal air pressure levels within the tank
Ensures proper system operation and pressure maintenance

6. Maintenance Ball Valve

Facilitates complete tank drainage during service periods
Enables efficient system maintenance and inspection

7. High-Flow Water Inlet/Outlet

Connects directly to water pump discharge for efficient water injection
Designed for maximum flow efficiency and minimal pressure loss

8. Main Water Outlet Connection

Direct interface to vessel’s main header piping system
Supplies pressurized seawater for all onboard washing applications

9. Safety Valve Discharge Outlet

Redirects over-pressure discharges safely to bilge systems
Maintains deck safety and environmental compliance

10. Main Discharge Outlet

Complete tank drainage capability for maintenance
Directs all water to bilge systems during service operations

Maintenance Protocol: Sea Water Hydrophore System Care

Regular Maintenance Checklist:

Monthly inspection of all suction pipeline connectors and cocks to prevent air intrusion
Quarterly checking of charge valve tightness and performance
Continuous monitoring of tank pressure levels within specified operational parameters
Periodic addition of compressed air through charge valve when pressure levels decrease

Preventive Maintenance Schedule:
