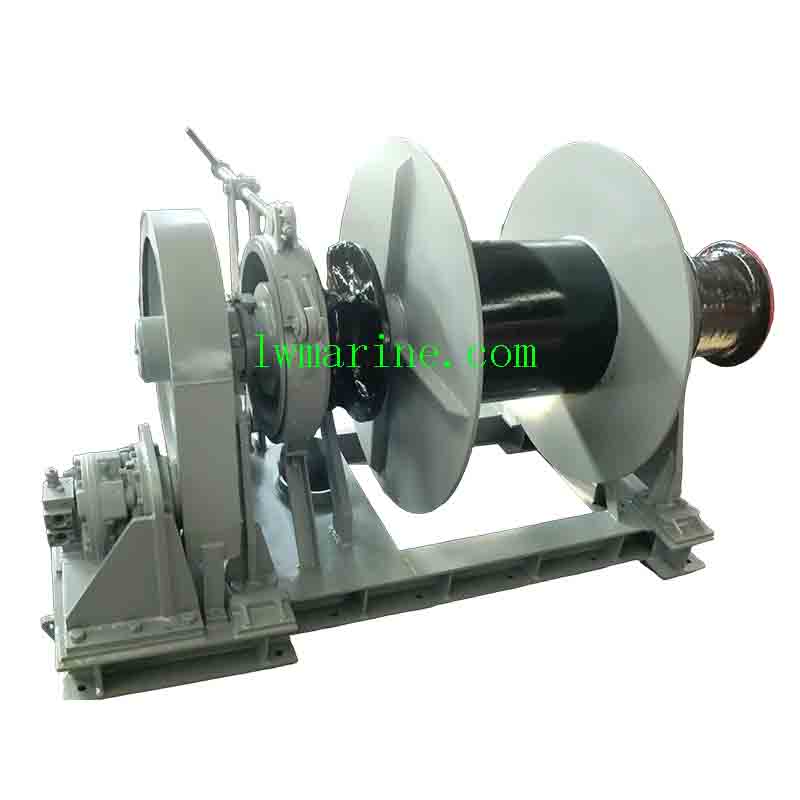

Sea Anchor Winch – High-Capacity Hydraulic Deck Winch for Fishing & Commercial Vessels
Specially engineered for modern fishing boats and commercial marine operations, this Sea Anchor Winch delivers reliable performance under demanding conditions. Featuring a large-drum design with generous rope capacity, it ensures extended operation without frequent repositioning. The winch is powered by a smooth and responsive hydraulic system, offering precise control, enhanced safety, and dependable operation during anchor handling, trawling, and mooring tasks.
With dual-speed capability and high working load ratings, this winch is suitable for both primary and auxiliary marine applications, providing versatility and power when you need it most.
Technical Specifications
| Parameter | Model T1 | Model T2 |
|---|---|---|
| Main Winch | ||
| Working Load (1 layer) | 150/75 kN | 100 kN |
| Nominal Speed (1 layer) | 12/24 m/min | 15 m/min |
| Rope Diameter | 100 mm | 100 mm |
| Drum Capacity | 300 m | 300 m |
| Auxiliary Winch | ||
| Working Load (1 layer) | 150/75 kN | 100 kN |
| Nominal Speed (1 layer) | 12/24 m/min | 15 m/min |
| Rope Diameter | 50 mm | 50 mm |
| Capacity | 400 m | 400 m |
| Hydraulic System | ||
| Working Pressure | 150 bar | 140 bar |
| Flow Rate | 161 L/min | 130.6 L/min |
Please Note: The description might be incorrect, please contact us for confirmation.
