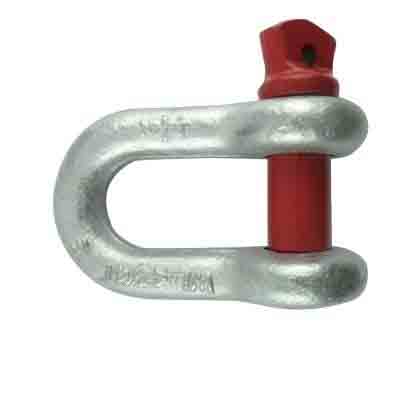

U.S. Type G215 Round Pin Chain Shackle
Our company specializes in high-quality U.S. Type G215 Round Pin Chain Shackle, available in a comprehensive range of sizes from 1/4 inch to 2 inch. With competitive pricing and a professional sales team dedicated to providing exceptional service, we are your go-to supplier for marine hardware, electric power, machinery, and metallurgy applications. Don’t hesitate to contact us for further information or to place an order.
Key Features:
- Type: U.S. Type G215 Round Pin Chain Shackle
- Material Options: Carbon steel for strength and durability, or alloy steel for enhanced corrosion resistance and performance in demanding environments
- Versatile Usage: Ideal for marine hardware, electric power systems, machinery, and metallurgical applications where secure lifting and rigging are essential
- Surface Treatment Choices: Electric galvanized for cost-effective corrosion protection or hot dipped galvanized for superior durability in harsh conditions
- Wide Size Range: From 1/4 inch to 2 inch, catering to various load requirements and applications
- Flexible Packing: Gunny bag, carton and pallet, or customized packaging to meet specific customer needs
- Our Strengths: Quality assurance, experienced staff, professional service, and competitive pricing
- Certifications: Compliant with ISO9001, CE, and SGS standards for your peace of mind
- Customization Available: Special specifications and marks can be tailored to individual customer requirements
Detailed Specifications:
| Nominal Size (in) | Weight (kg) | WLL (ton) | Dimensions (mm) – A | B | C | D | E | F | G | H | N |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1/4 | 0.05 | 1/2 | 11.9 | 7.85 | 28.7 | 6.35 | 19.8 | 15.5 | 32.5 | 46.7 | 34.0 |
| 5/16 | 0.08 | 3/4 | 13.5 | 9.65 | 31.0 | 7.85 | 21.3 | 19.1 | 37.3 | 53.0 | 40.4 |
| … (continue with other sizes as provided in the original text) | |||||||||||
| 2 | 3.03 | 35 | 46.0 | 31.80 | 108.0 | 29.50 | 74.0 | 68.5 | 131.0 | 190.0 | 130.0 |
FAQs:
- Q: What makes the U.S. Type G215 Round Pin Chain Shackle suitable for marine applications?
- A: The U.S. Type G215 Round Pin Chain Shackle is crafted from high-quality carbon steel or alloy steel, offering exceptional strength and durability. Its robust design and reliable round pin mechanism ensure secure lifting and rigging in marine environments, where safety and reliability are paramount.
- Q: Can I choose between different surface treatments for the U.S. Type G215 Round Pin Chain Shackles?
- A: Yes, we offer both electric galvanized and hot dipped galvanized surface treatments for the U.S. Type G215 Round Pin Chain Shackle. This allows you to select the option that best suits your specific needs and environmental conditions, ensuring optimal corrosion resistance and longevity.
- Q: What is the working load limit (WLL) of the U.S. Type G215 Round Pin Chain Shackle in different sizes?
- A: The working load limit varies depending on the nominal size of the shackle. Our detailed specifications table provides the WLL for each size, enabling you to select the appropriate shackle for your specific lifting and rigging requirements.
- Q: Can I request custom specifications for the U.S. Type G215 Round Pin Chain Shackles?
- A: Absolutely, we understand that different applications may require unique specifications. We offer customization services to tailor the U.S. Type G215 Round Pin Chain Shackle to your specific needs, including special dimensions, marks, or other features.
Please Note: The description might be incorrect, please contact us for confirmation.
