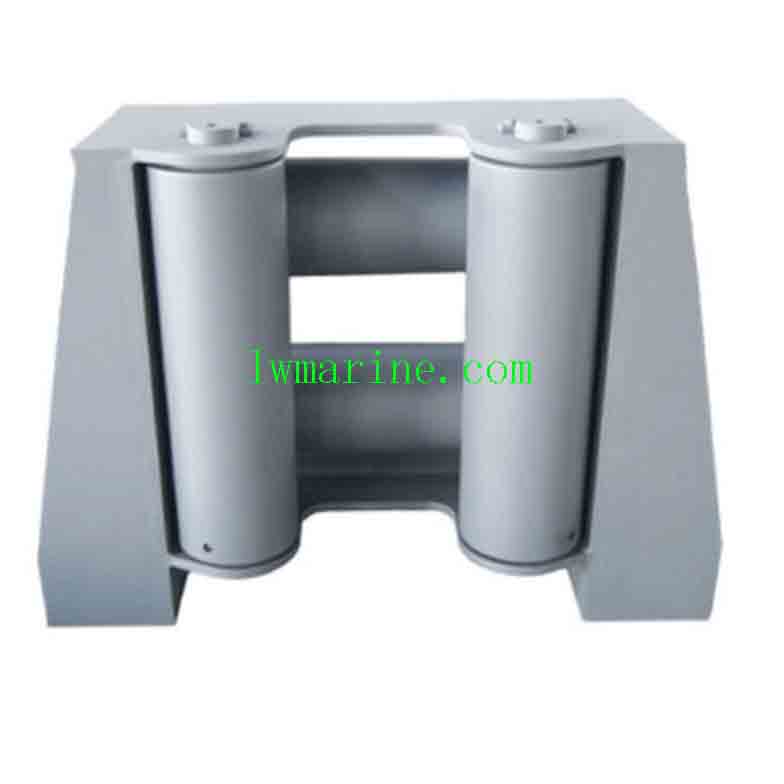

JIS F2026 Roller Fairlead Type A – High-Performance Marine Winch Accessory
The JIS F2026 Roller Fairlead Type A is an essential marine winch accessory designed to guide and protect wire ropes during operation, ensuring smooth and efficient performance. This robust fairlead is engineered to withstand the rigors of marine environments, offering exceptional durability and reliability.
Key Features:
- Precision Engineering: Manufactured according to JIS (Japanese Industrial Standards) F2026 specifications, ensuring high-quality construction and performance.
- Versatile Sizes: Available in multiple nominal diameters (140mm, 160mm, 180mm, 200mm, 250mm, 315mm) to accommodate various wire rope diameters (18mm, 22.4mm, 25mm, 28mm, 35.5mm, 42.5mm).
- High Safe Working Load (SWL): Capable of handling substantial loads, with SWL ratings ranging from 12 tons to 60 tons, depending on the model.
- Optimized Dimensions: Each fairlead is meticulously designed with precise dimensions to ensure seamless integration with your marine winch system. Dimensions include calculated weight, opening diameter, and various length and width measurements (e.g., D1, D2, D3, H, h, L1, L, l, B1).
- Corrosion Resistance: Constructed from high-quality materials that resist corrosion, extending the lifespan of the fairlead even in harsh marine conditions.
Technical Specifications:
| Nominal Dia (mm) | Wire Rope Dia. (mm) | SWL (Ton) | Calculated Weight | Dimensions (mm) | Opening Dia. |
|---|---|---|---|---|---|
| 140 | 18 | 12 | 187 | D1: 140, D2: 120, D3: 80, H: 480, h: 275, L1: 805, L: 515, l: 335, B1: 148 X 195 | – |
| 160 | 22.4 | 17 | 277 | D1: 160, D2: 140, D3: 90, H: 515, h: 290, L1: 890, L: 570, l: 365, B1: 150 X 200 | – |
| 180 | 25 | 24 | 387 | D1: 180, D2: 150, D3: 100, H: 560, h: 315, L1: 960, L: 620, l: 390, B1: 150 X 199 | – |
| 200 | 28 | 28 | 510 | D1: 200, D2: 160, D3: 110, H: 590, h: 330, L1: 1049, L: 675, l: 420, B1: 152 X 204 | – |
| 250 | 35.5 | 46 | 900 | D1: 250, D2: 200, D3: 130, H: 715, h: 415, L1: 1303, L: 825, l: 520, B1: 199 X 253 | – |
| 315 | 42.5 | 60 | 1230 | D1: 300, D2: 240, D3: 160, H: 870, h: 520, L1: 1562, L: 980, l: 620, B1: 253 X 302 | – |
Applications:
- Ideal for use in marine winch systems on boats, ships, and offshore platforms.
- Suitable for various industries, including fishing, shipping, and offshore oil and gas exploration.
Note: The description might be incorrect, please contact us for confirmation.
