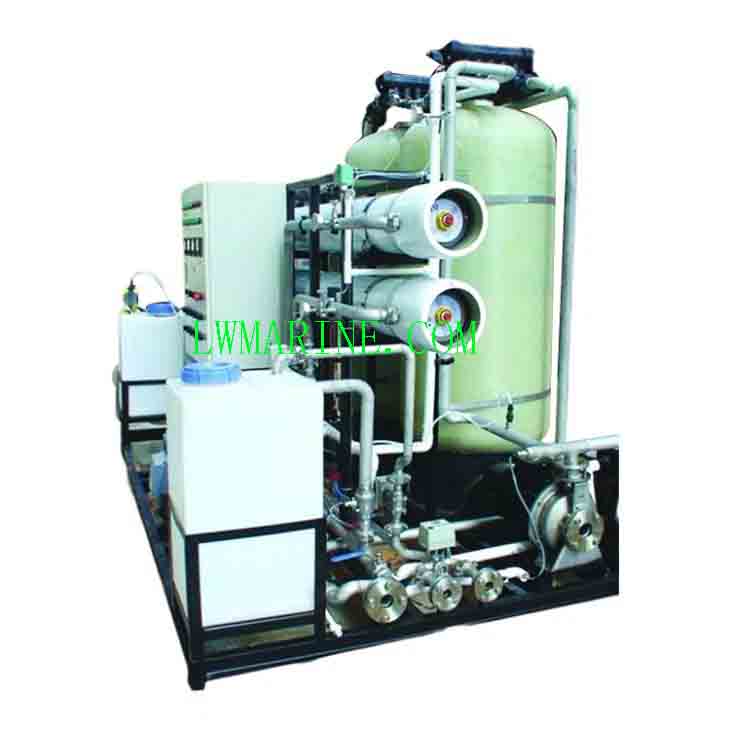

Reverse Osmosis Water Generator

Reverse Osmosis Water Generator – Turn Seawater into Pure Drinking Water

1. Introduction: High-Efficiency Seawater Desalination System

Seawater contains extremely high salt levels, making it unsuitable for direct use. While distillation and reverse osmosis are the two primary desalination methods, distillation is limited to large-scale applications in energy-rich environments due to its high energy consumption. In contrast, our Reverse Osmosis Water Generator offers a versatile, energy-efficient, and high-performance solution with exceptional salt rejection rates, making it ideal for a wide range of applications.

We integrate internationally certified, high-quality seawater RO membranes known for their outstanding salt removal capabilities, reliability, and long-term stability. The system is equipped with an industrial-grade high-pressure pump specifically designed for desalination, featuring built-in high and low-pressure protection to ensure operational safety and durability.

The purified water meets National Drinking Water Quality Standards (GB5749-85), requires no chemical additives, and is safe for direct consumption—delivering fresh, great-tasting water every time.

Engineered for portability, affordability, and reliability, our system combines advanced technology with practical design, providing an unbeatable solution for sustainable freshwater production.

2. Key Features of Our Reverse Osmosis Desalination System

One-Touch Automatic Operation: Fully automated startup, flushing, and shutdown with user-friendly touch-screen and PLC control for real-time monitoring and effortless operation.
Intelligent Monitoring & Safety Systems:
- High and low-pressure protection with automatic shutdown
- Device fault alarm and diagnostic indicators for quick troubleshooting
- Multiple flow and pressure sensors for continuous performance tracking
Premium Filtration Technology:
- U.S.-imported DOW seawater RO membrane with up to 99.7% salt rejection rate
- High-quality quartz sand filter for removing algae and large impurities
- Cartridge filters and UV sterilizer for multi-stage protection
Durable & Corrosion-Resistant Components:
- High-pressure parts constructed in SS316 stainless steel
- Low-pressure connections using UVPC material
- Custom FRP membrane housing for easy and secure assembly
Precise Dosing System:
- SEKO metering pump with power switch and navigational plug for easy maintenance
- Accurate antiscalant injection to extend membrane life
Portable & Flexible Design:
- Universal wheels and adjustable legs for easy mobility and installation
- Compatible with grid power, generators, and solar/wind energy systems
High Integration & Modern Setup:
- Pre-assembled with all necessary accessories—simply connect water and power to begin operation

3. Technical Configurations

Model / Configuration	HS-SWRO-5m³	HS-SWRO-10m³
Core Filtration	DOW4040 Seawater RO Membrane × 2	DOW4040 Seawater RO Membrane × 4
Pretreatment	Sand Filter + 5μm PP Filter × 2	Sand Filter + 5μm PP Filter × 2
Post-Treatment	14W Hanovia UV Sterilizer (U.S.)	14W Hanovia UV Sterilizer (U.S.)
Raw Water Pump	Stainless Steel, 1.5 m³/h, 25m Lift	Stainless Steel, 3 m³/h, 25m Lift
High-Pressure Pump	SS316L Material	SS316L Material
Instrumentation	Inlet Pressure Gauge, Flow Meter, Online Conductivity Meter (Korida)	Same
Optional Features	Liquid Level Switch, Pressure Tank	Liquid Level Switch, Pressure Tank
