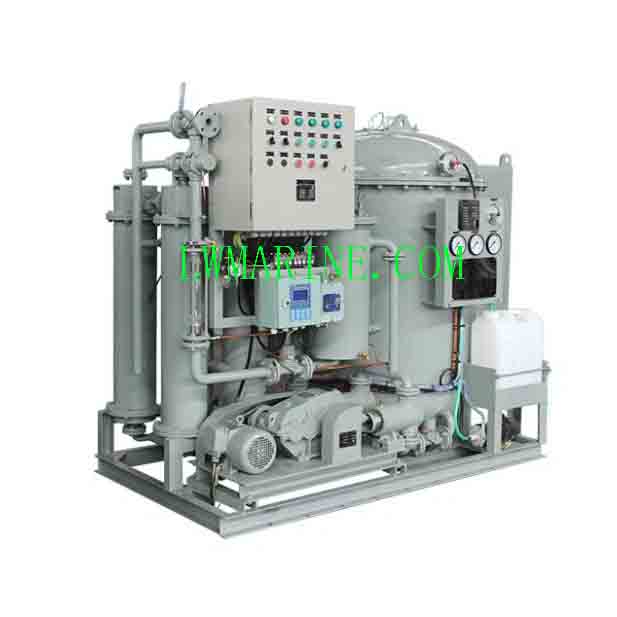

Marine Reliable Oil Content Monitor
Our Marine Reliable Oil Content Monitor is an advanced bilge water treatment system designed to process vessel oily bilge water to meet stringent international discharge standards. Fully compliant with IMO MEPC.107(49) regulations, this comprehensive system includes a type-approved 15ppm bilge water separator, 15ppm oil content monitor, and automatic shutdown device. Ideal for commercial vessels, offshore platforms, and workboats, it ensures environmental compliance and prevents marine pollution.
Key Components
✅ 15ppm Bilge Water Separator – Multi-stage separation system
✅ 15ppm Bilge Alarm – Continuous oil content monitoring and alarm
✅ Automatic Shutdown Device – Prevents overboard discharge during non-compliance
Working Principle – Advanced Three-Stage Separation Technology
1st Stage: Cone Plate Gravity & Coalescence Separation
-
Bilge water enters under vacuum negative pressure (not pressurized)
-
Prevents emulsion formation and enhances oil-water separation efficiency
-
Initial separation of free oil and larger particles
2nd Stage: Fiber Filter Adsorption
-
Fine filtration through specialized fiber media
-
Removes emulsified oils and suspended solids
-
Prepares water for final polishing stage
3rd Stage: Membrane Permeation
-
Ultra-fine membrane filtration ensures final purity
-
Achieves consistent ≤15ppm oil content output
-
Automatic activation when oil content exceeds limits
Monitoring & Control System
-
Continuous Oil Content Monitoring: Real-time measurement of effluent quality
-
Automatic Recirculation: If oil content exceeds 15ppm, pneumatic three-way valve VS6 automatically returns water to bilge tank
-
Overboard Discharge Prevention: Complete system lockdown during non-compliance
-
Alarm System: Audible and visual alerts for maintenance and intervention needs
