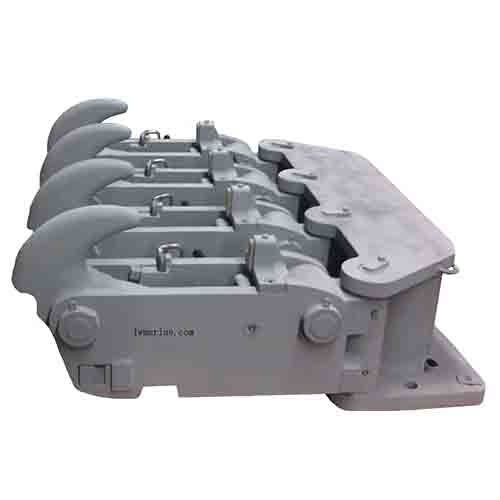

Quadruple Quick Release Mooring Hook: The Ultimate Solution in Advanced Marine Mooring
Four – Point Fortified Security with Lightning – Fast Emergency Release Functionality
Our quadruple quick release mooring hook stands as the epitome of innovation in the realm of marine mooring systems. It offers an unparalleled level of security, coupled with the ability to rapidly disengage in emergency situations. Tailored for high – stakes marine operations, this sophisticated system incorporates quadruple redundancy, ensuring maximum safety during the mooring of vessels.
Unrivaled Features and Advantages
🔷 Four – Hook Architecture for Supreme Mooring Security
The quadruple – hook design features four independent arms arranged in a circular pattern. This configuration provides the ultimate in mooring security, distributing the load evenly across multiple points. In the event of sudden changes in vessel movement or external forces, each arm can independently absorb and manage the stress, preventing any single – point failure that could compromise the mooring.
⚡ Instantaneous Simultaneous Release Mechanism
One of the most remarkable features of our mooring hook is its ability to disengage all four hooks simultaneously within seconds. This rapid release capability is crucial in emergency scenarios, such as when a vessel needs to quickly break free from the mooring to avoid an impending collision or to respond to a sudden change in environmental conditions. It significantly reduces the time and effort required to release the vessel, enhancing overall safety and operational efficiency.
⚓ Exceptional Load – Bearing Capacity
The mooring hook is engineered to handle extreme loads. It can withstand mounting base loads of up to 6000kN, making it suitable for mooring large commercial vessels, offshore platforms, and heavy – duty marine structures. The safe working load ranges from 400kN to 1500kN (40 – 150 metric tons), providing ample capacity for a wide variety of marine applications.
🌊 All – Weather Operational Reliability
This mooring hook is designed to perform reliably in a wide range of weather conditions. It can operate effectively in temperatures ranging from – 30°C to + 60°C, ensuring that it remains functional in both freezing polar regions and scorching tropical climates. Its robust construction and high – quality materials make it resistant to corrosion, saltwater damage, and other environmental factors that can affect the performance of marine equipment.
🔄 Multi – Angle Adaptability for Vessel Movement
The mooring hook offers a wide swing range to accommodate the natural movement of vessels. Horizontally, it can rotate from – 90° to + 90° in multiple configurations, allowing the vessel to move freely in response to waves, tides, and wind. Vertically, it has a movement range of – 5° to + 45°, further enhancing its ability to adapt to different mooring conditions and vessel types.
Technical Specifications
Hook Configuration
The mooring hook consists of 4 independent arms arranged in a circular pattern, providing a balanced and secure mooring solution.
Load Capacity
- Safe Working Load: Ranges from 400kN to 1500kN (40 – 150 metric tons), ensuring it can handle a variety of vessel sizes and weights.
- Mounting Base Capacity: Can support loads from 1600kN to 6000kN, making it suitable for heavy – duty marine applications.
Weight Range
The weight of the mooring hook (excluding the capstan) varies from 928kg to 4698kg, depending on the specific model and configuration.
Operation Force
It requires a handle pressure of less than 150N to operate, making it easy to use even in high – stress situations.
Movement Range
- Horizontal: Can rotate from – 90° to + 90° in multiple configurations, allowing for flexible vessel positioning.
- Vertical: Has a movement range of – 5° to + 45°, enabling it to adapt to different mooring angles.
Capstan Performance
- Pulling Speed: The capstan can pull at a speed of 18 – 25m/min, facilitating efficient mooring and unmooring operations.
- Pull Capacity: It has a pull capacity of 10kN – 30kN, providing sufficient force for various mooring tasks.
- Working Diameter: The working diameter of the capstan is 250mm, ensuring compatibility with a wide range of mooring ropes and cables.
The description/sizes may be different with goods, please check with us when order.
