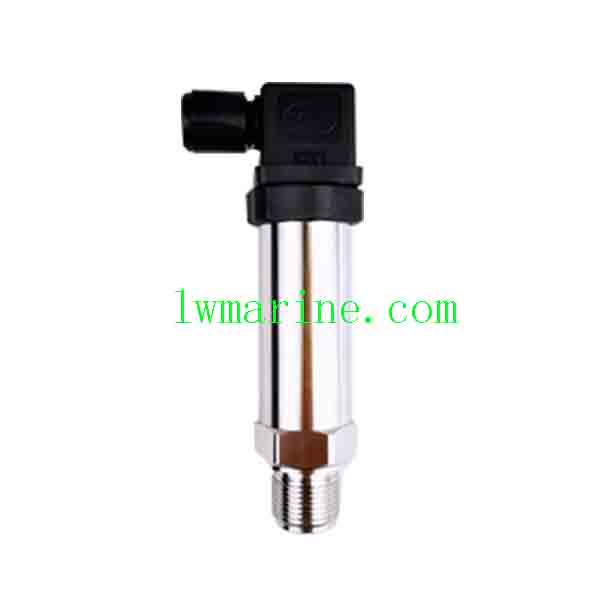

YSZK-01S-C-E Pressure Transmitter – Precision Industrial Pressure Measurement Solution

Product Overview
The YSZK-01S-C-E Pressure Transmitter is an advanced industrial-grade instrument designed for accurate pressure measurement and monitoring across diverse applications. This sophisticated device converts mechanical pressure signals into standardized electrical outputs, enabling seamless integration with control systems and data acquisition platforms. Engineered for reliability in demanding environments, it serves critical functions in oil and gas operations, chemical processing plants, manufacturing facilities, and industrial automation systems.

Key Features & Benefits

✅ Wide Pressure Range Capability – Multiple configurations from vacuum to high-pressure applications (-0.1MPa to 60MPa)
✅ Standardized Output Signals – Industry-standard 4-20mA or 0-10VDC outputs for universal compatibility
✅ High Measurement Accuracy – Precision-engineered for reliable process control and monitoring
✅ Robust Temperature Tolerance – Designed to maintain performance across specified operating temperature ranges
✅ Versatile Pressure Types – Available in gauge, absolute, and sealed reference configurations
✅ Industrial-Grade Construction – Built to withstand harsh environmental conditions and corrosive media
✅ Easy System Integration – Standard electrical connections for straightforward installation and commissioning

Technical Specifications

Measuring Ranges Available:

Type	Measuring Range (MPa)
Gauge Type	-0.1～0.1, -0.1～0, 0～0.10, 0～0.16, 0～0.25 up to 0～60
Absolute Type	0～0.10, 0～0.16, 0～0.25, 0～0.40, 0～0.60 up to 0～60
Sealed Type	0～0.01, 0～0.02, 0～0.05, 0～0.10, 0～1.0, 0～2.0
