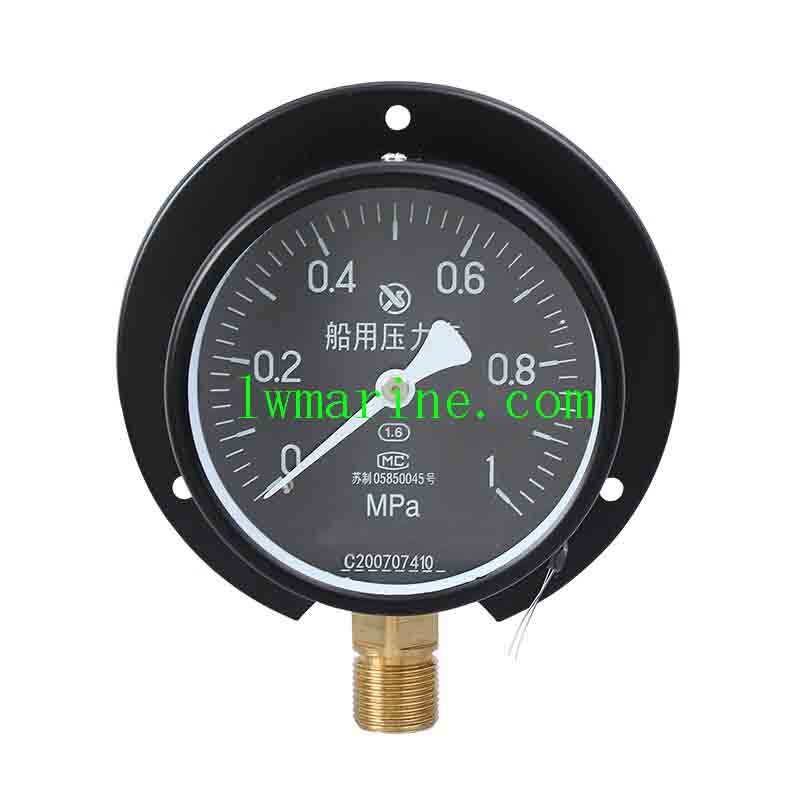

YC Series Marine Pressure Gauge | Pressure Gauge for Ship
Product Overview
The YC Series Marine Pressure Gauge for ship is a robust, marine-grade instrument engineered for reliable pressure measurement in demanding shipboard environments. Specifically designed to withstand saltwater corrosion, constant vibration, and extreme temperature fluctuations, these gauges deliver accurate performance for critical marine systems including engine monitoring, hydraulic systems, compressed air networks, and seawater cooling circuits. With multiple configuration options and corrosion-resistant construction, the YC series ensures safe and efficient vessel operation across commercial shipping, offshore, and naval applications.
Key Features & Benefits
-
Marine-Grade Corrosion Resistance: Constructed from 316 stainless steel and marine-grade brass for maximum longevity in saltwater environments
-
Vibration & Shock Resistant Design: Liquid-filled models (N-series) provide superior damping for stable readings in high-vibration marine applications
-
IP64 Protection Rating: Complete protection against water splash, salt spray, and dust ingress for reliable operation in exposed locations
-
Wide Pressure Ranges: Comprehensive selection from vacuum (-0.1MPa) to high pressure (2.5MPa) to match specific system requirements
-
Multiple Connection Options: Available with G1/2″, G3/8″, NPT1/2″, M14×1.5, and M20×1.5 threads for global compatibility
-
Clear, Legible Dials: Four standard diameters (Φ60, Φ75, Φ100, Φ150) with high-contrast markings for easy reading in all lighting conditions
-
Extended Temperature Operation: Suitable for environmental temperatures from -40°C to +70°C (non-liquid filled) and -25°C to +70°C (liquid filled)
Model Identification Guide
| Code | Description | Application |
|---|---|---|
| S | Three-pin connection | Electrical signal output models |
| Z | Axial type mounting | Direct front mounting applications |
| ZT | Axial side type | Flexible orientation mounting |
| T | Radial back side type | Standard panel mounting |
| TF | Radial back square side type | Specialized panel installations |
| N | Anti-vibration type | Liquid-filled for high-vibration areas |
| Y | Standard pressure gauge | General pressure monitoring |
| YZ | Vacuum pressure gauge | Combined vacuum/pressure systems |
| Z | Vacuum gauge | Vacuum system monitoring |
| YX | Pressure gauge with electric contact | Alarm and control functions |
| YA | Ammonia gauge | Refrigeration and cooling systems |
| YC | Marine pressure gauge | General marine applications |
Technical Specifications
| Dial Diameter (mm) | Measurement Range (MPa) | Accuracy Class | Connection Types | Body Material Options |
|---|---|---|---|---|
| Φ60, Φ75, Φ100, Φ150 | Vacuum: -0.1～0 to -0.1～2.4 Pressure: 0～0.1 to 0～2.5 |
1.0, 1.6, 2.5 | M10×1, M14×1.5, M20×1.5, G1/2″, G3/8″, NPT1/2″ | 304 Stainless Steel 316 Stainless Steel 316L Stainless Steel |
Environmental Specifications
-
Operating Temperature: -25°C to +70°C (liquid filled); -40°C to +70°C (non-liquid filled)
-
Temperature Influence: ≤0.4% per 10°C (at 20±5°C deviation)
-
Vibration Resistance: V.H.4 (liquid filled); V.H.3 (non-liquid filled)
-
Weather Protection: IP64 (dust and water splash resistant)
The description/sizes may be different with goods, please check with us when order.
