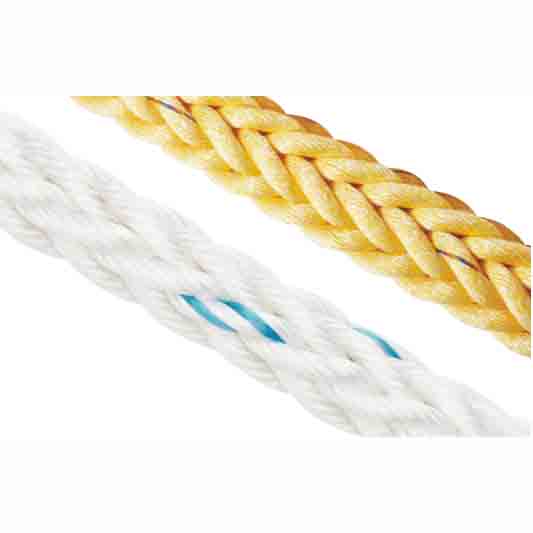

8-Strand and 12-Strand ROPE
General
-
Material: Polyester / Polyolefin / PP
-
Melting Point: 165℃ / 260℃
-
Elongation at Break: 12~15%
-
Abrasion Resistance: Excellent
-
UV Resistance: Good
-
Chemical Resistance: Good
-
Compliant with: OCIMF MEG4
8-Strand and 12-Strand ROPE is a mixed fiber rope made of high-quality polyester and polyolefin fibers. It offers excellent abrasion resistance, high strength, good chemical resistance, and is lightweight. The rope is made of high-strength polyester and polyolefin fibers, which provide excellent abrasion resistance and high strength. It is widely used for mooring, towing, and lifting applications in the marine and offshore industries.
Key Features
-
Excellent abrasion resistance: The mixed fiber construction provides high resistance to wear and tear.
-
High strength: The rope is as strong as steel wire rope of the same diameter, but much lighter.
-
Excellent chemical resistance: The rope is resistant to most acids, alkalis, and solvents.
-
Good UV resistance: The rope is resistant to the harmful effects of UV radiation and maintains its strength over time.
-
Low water absorption: The rope does not absorb water, which ensures excellent performance even in wet conditions.
Application
Port towing, oil tankers, asphalt ships, chemical tankers, large bulk carriers, offshore fishing and other fields.
8-Strand and 12-Strand Technical Parameters (ISO MEG4)
| Size (mm) | Circumference (inch) | Weight (kg/m) | Weight (kg/220m) | ISO MBF (kN) | ISO MBF (Ton) | MEG4 LDBF (kN) | MEG4 LDBF (Ton) |
|---|---|---|---|---|---|---|---|
| 28 | 3 | 334 | 73.5 | 123 | 12.6 | 110 | 11.3 |
| 32 | 4 | 495 | 108.9 | 163 | 16.6 | 147 | 15.0 |
| 36 | 4 1/2 | 605 | 133.1 | 209 | 21.3 | 188 | 19.2 |
| 40 | 5 | 742 | 163.2 | 273 | 27.8 | 245 | 25.0 |
| 44 | 5 1/2 | 915 | 201.3 | 330 | 33.6 | 297 | 30.3 |
| 48 | 6 | 1000 | 220.0 | 392 | 40.0 | 353 | 36.0 |
| 52 | 6 1/2 | 1148 | 252.6 | 408 | 41.6 | 367 | 37.4 |
| 56 | 7 | 1320 | 290.4 | 453 | 46.2 | 408 | 41.6 |
| 60 | 7 1/2 | 1410 | 310.2 | 490 | 49.9 | 441 | 45.0 |
| 64 | 8 | 1500 | 330.0 | 526 | 53.7 | 473 | 48.3 |
| 68 | 8 1/2 | 1718 | 378.0 | 588 | 60.0 | 529 | 54.0 |
| 72 | 9 | 1750 | 385.0 | 608 | 62.1 | 547 | 55.9 |
| 76 | 9 1/2 | 2005 | 441.1 | 692 | 70.6 | 622 | 63.5 |
| 80 | 10 | 2250 | 495.0 | 775 | 79.1 | 698 | 71.2 |
| 84 | 10 1/2 | 2550 | 561.0 | 798 | 81.5 | 718 | 73.3 |
| 88 | 11 | 2700 | 594.0 | 868 | 88.6 | 781 | 79.7 |
| 92 | 11 1/2 | 2900 | 638.0 | 920 | 93.8 | 828 | 84.5 |
| 96 | 12 | 3400 | 748.0 | 971 | 99.1 | 874 | 89.2 |
| 100 | 12 1/2 | 3800 | 836.0 | 1048 | 107.0 | 944 | 96.3 |
| 104 | 13 | 4200 | 924.0 | 1177 | 120.1 | 1059 | 108.1 |
| 112 | 14 | 4500 | 990.0 | 1330 | 135.8 | 1197 | 122.2 |
| 120 | 15 | 5700 | 1254.0 | 1422 | 145.1 | 1280 | 130.6 |
Note:
-
MBL = Minimum Breaking Force per ISO2307.
-
LDBF = Line Design Break Force per OCIMF MEG4 Appendix B.
-
Other sizes are available upon request.
