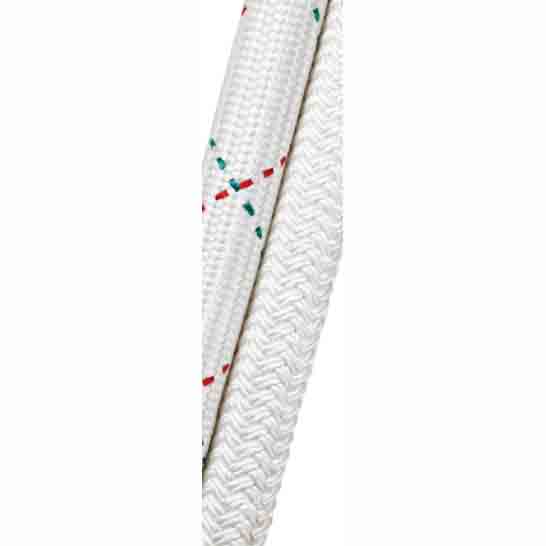

Polyamide Double Braided Rope
| Size (mm) | Circumference (inch) | Weight (kg/m) | Weight (kg/220m) | Dry Strength – ISO MBF (kN) | Dry Strength – ISO MBF (Ton) | Wet Strength – ISO MBF (kN) | Wet Strength – ISO MBF (Ton) | MEG4 LDBF (kN) | MEG4 LDBF (Ton) |
|---|---|---|---|---|---|---|---|---|---|
| 40 | 5 | 1100 | 242.0 | 400 | 40.8 | 360 | 36.7 | 312 | 31.8 |
| 44 | 5 1/2 | 1250 | 275.0 | 483 | 49.3 | 435 | 44.4 | 377 | 38.5 |
| 48 | 6 | 1570 | 345.4 | 625 | 63.8 | 562 | 57.4 | 490 | 50.0 |
| 52 | 6 1/2 | 1810 | 398.2 | 722 | 73.7 | 650 | 66.3 | 568 | 58.0 |
| 56 | 7 | 2065 | 454.3 | 805 | 82.1 | 725 | 74.0 | 635 | 64.8 |
| 60 | 7 1/2 | 2440 | 536.8 | 930 | 94.9 | 837 | 85.4 | 735 | 75.0 |
| 64 | 8 | 2790 | 613.8 | 1060 | 108.2 | 954 | 97.3 | 836 | 85.3 |
| 68 | 8 1/2 | 3190 | 701.8 | 1230 | 125.5 | 1107 | 113.0 | 970 | 99.0 |
| 72 | 9 | 3580 | 787.6 | 1400 | 142.8 | 1260 | 128.5 | 1104 | 112.6 |
| 76 | 9 1/2 | 4060 | 893.2 | 1650 | 168.4 | 1485 | 151.5 | 1300 | 132.7 |
| 80 | 10 | 4600 | 1012.0 | 1860 | 189.8 | 1674 | 170.8 | 1465 | 149.5 |
| 84 | 10 1/2 | 5100 | 1122.0 | 2080 | 212.3 | 1872 | 191.0 | 1638 | 167.2 |
| 88 | 11 | 5700 | 1254.0 | 2310 | 235.7 | 2079 | 212.1 | 1819 | 185.6 |
| 92 | 11 1/2 | 6000 | 1320.0 | 2520 | 257.1 | 2268 | 231.4 | 1985 | 202.5 |
| 96 | 12 | 6370 | 1401.4 | 2720 | 277.5 | 2448 | 249.8 | 2143 | 218.7 |
| 100 | 12 1/2 | 6770 | 1489.4 | 2930 | 298.9 | 2637 | 269.1 | 2309 | 235.6 |
| 104 | 13 | 7200 | 1584.0 | 3120 | 318.4 | 2808 | 286.5 | 2458 | 250.8 |
| 108 | 13 1/2 | 7900 | 1738.0 | 3400 | 346.9 | 3060 | 312.2 | 2678 | 273.3 |
| 112 | 14 | 8500 | 1870.0 | 3700 | 377.5 | 3330 | 339.8 | 2914 | 297.3 |
| 116 | 14 1/2 | 9200 | 2024.0 | 4000 | 408.2 | 3600 | 367.3 | 3150 | 321.4 |
| 120 | 15 | 9900 | 2178.0 | 4300 | 438.8 | 3870 | 394.8 | 3387 | 345.6 |
Note: The description may be different with the product, please contact us for quotation.
