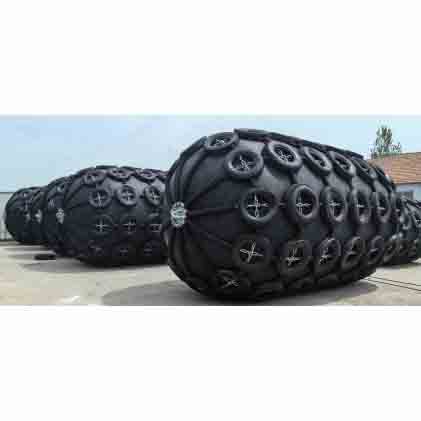

Pneumatic Rubber Fenders

General

The Marine pneumatic rubber fenders are manufactured and tested comply with ISO 17357. Our real Yokohama type pneumatic fenders are made based on Korean production technology.
Pneumatic rubber fenders consist of an out rubber, reinforcement synthetic-tire-cord layer, and inner rubber vulcanized firmly. Those end synthetic-cord layer can be used as the main element to sustain internal performance even under rough condition and cyclical load. The maintenance cost and damage risk are minimized too. The best material also ensure the self-buoyancy and its long-time service life.

Initial Internal Pressure

50 kPa (Pneumatic 50)
80 kPa (Pneumatic 80)

Pneumatic Fender Type

Sling type – without chain and tire net.
Net type – with chain and tire net.

Pneumatic 50 kPa Performance Parameters

Nominal Size D x L (mm)	Energy Absorption (GJ)	Reaction Force (kN)	Hull Pressure (kPa)	Energy Absorption (GJ)	Reaction Force (kN)	Hull Pressure (kPa)
500 x 1000	6	64	132	8	85	174
700 x 1500	17	137	195	26	180	277
1000 x 1500	32	182	214	45	248	299
1000 x 2000	45	257	192	63	338	274
1200 x 2000	63	297	197	86	392	280
1350 x 2500	102	427	180	142	561	254
1500 x 3000	153	579	198	211	761	280
1700 x 3000	191	639	189	267	840	268
2000 x 3500	308	875	219	424	1156	313
2000 x 4000	363	1000	204	505	1321	290
2500 x 4000	545	1200	211	765	1600	303
2500 x 5500	781	1699	218	1100	2233	313
3000 x 5000	970	1771	238	1368	2325	338
3000 x 6000	1209	2118	258	1701	2783	366
3300 x 6500	1514	2613	239	2125	3429	331
3300 x 10600	2645	4826	256	3679	6345	363
4000 x 8000	2557	3439	244	3586	4512	346
4500 x 9000	3896	5007	257	5462	6638	362

Note: Other sizes can be made according to user demand.

Hydro Pneumatic Fenders

General

Our hydro pneumatic fenders provide advanced underwater protection for submarines and naval vessels through innovative engineering. These specialized marine solutions utilize a precisely balanced internal air and water combination in an adjustable ratio, which strikes a perfect balance between stability and buoyancy, ensuring optimal vertical positioning during all berthing operations. The pneumatic fenders’ unique design ensures continuous hull protection while accommodating various pressure settings to meet different operational requirements.

Technical Parameters

Model	Absorbed Energy (Air Filled) (KJ)	Reaction Force (Air Filled) (KN)	Water Air	Absorbed Energy (Partially Water Filled) (KJ)	Reaction Force (Partially Water Filled) (KN)
HP 1700/250	108	506	0.35	125	599
HP 2000/350	108	837	0.35	257	587
HP 2500/350	157	990	0.35	225	675
HP 3000/350	189	1063	0.35	422	1222
HP 3300/350	189	1063	0.35	396	1142
HP 3300/4500	205	1155	0.35	506	1206

Hydro Pneumatic Fender Installation

(Diagram provided in the source image)
Standard type is hanging type; Submarine type is fixed on the submarine; with built-in counterweight to keep correct angle.

Model:
- HPA 1700/2500: Submarine HP Fenders.
- HPB 3300/4500: Submarine Fenders.
- HPC 3000/3500: Submarine Fenders.
Features:
- Suitable for submarine docking and port berthing.
- Adjustable pressure and buoyancy.
- Designed to provide optimal vertical positioning for submarines during berthing.
- Material: High-strength rubber reinforced with synthetic tire cord.
- External protection: Available with chain and tire net.
Installation: Hydro pneumatic fenders are usually installed on submarine boats and piers. For HPA type, the fender is normally installed on the submarine boats and can be used as a buffer and support. For HPB type, the fender is normally installed on the pier.

Note: Other sizes can be made according to user demand.

Note: The description may be different with the product, please contact us for quotation.
