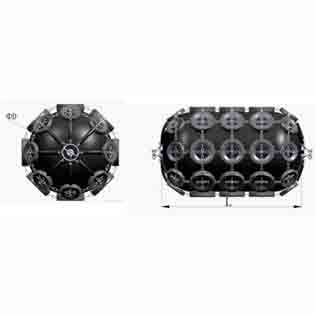

Pneumatic Rubber Fender For Ship
Features
- Pneumatic fenders have low reaction force and low surface pressure.
- Their performance can be adjusted by varying the initial pressure.
- Suitable for areas with large or small tidal ranges.
- Optional chain – tyre nets for heavy – duty applications.
- Easy and fast installation.
- Low reaction force and surface pressure.
- Performance adjustable by varying initial pressure.
- Suitable for areas with large or small tides.
- Optional chain – tyre nets for heavy – duty applications.
- Easy and fast installation.
Specification Performance
| Spec. (ΦD×L) (mm) | Initial Internal Pressure 50kPa | Initial Internal Pressure 80kPa |
|---|---|---|
| Energy Absorption (kN – m) | Reaction Force (kN) | |
| 300×500 | 1.3 | 22.6 |
| 500×1000 | 7.2 | 73.6 |
| 800×1200 | 21.6 | 141 |
| 1000×1500 | 40.2 | 222 |
| 1000×2000 | 54 | 295 |
| 1200×2000 | 77.5 | 354 |
| 1350×2500 | 125 | 496 |
| 1500×3000 | 182 | 658 |
| 2000×3500 | 378 | 1030 |
| 2500×4000 | 675 | 1481 |
| 3000×5000 | 1226 | 2207 |
| 3300×6500 | 1913 | 3169 |
Notes:
- Tolerance: ±10%;
- Other specifications can be manufactured according to client’s requirement.
Attention please: The description may be different with the product, please contact us for quotation.
