Pneumatic Drum Pumps
| IMPA Code/The reference model | Picture | Product Description and Configuration | Remark | NG/kg | MG/kg | MEAS:cm |
|---|---|---|---|---|---|---|

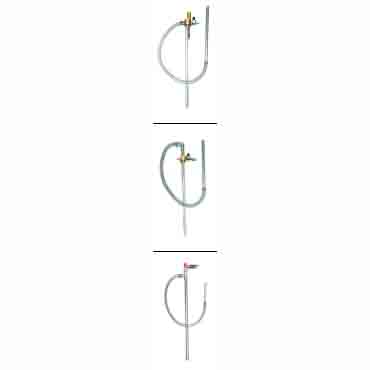

| TD-51 (591651) | [Image omitted] | Suction/Discharge Pneumatic Drum Pumps Working air pressure 0.59-0.8MPa, aluminum alloy material, light and convenient, negative pressure suction, positive pressure discharge, compressed air driven, two functions of suction and discharge of liquid, discharge/ suction speed about 140L/minute |
2.5 | 400*415.2*13.3 | ||
| TD-53 (591653) | [Image omitted] | Pneumatic Drum Pumps Working air pressure 0.59-0.8MPa, SUS304 stainless steel material, compressed air driven, one-way liquid discharge speed about 100L/min |
3.2 | 10*13.2*13.5 | ||
| TD-57 (591657) | [Image omitted] | Pneumatic Impeller Pump Working air pressure 0.59-0.8MPa, SUS304 stainless steel material, air motor drives the impeller to extract liquid, double impeller pumping head can reach 9-12 meters, all parts in contact with liquid are made of 304 stainless steel, resistant to acid, alkali and salt corrosion, one-way discharge speed is about 80L/minute |
No need to seal the barrel cover, just need to turn off the air valve and connect it to the air source | 3.3 | 112.4*25.4*6.8 | |
| TD-61 (591661) | [Image omitted] | Pneumatic Piston Pumps Working air pressure 0.59-0.8MPa, aluminum alloy material, pneumatically driven piston to extract liquid, one-way discharge speed about 30L/min |
2.8 | 126.5*11.2*8.8 |
Note: The description may be different with the product, please contact us for quotation.
