PN16 Y-STRAINER

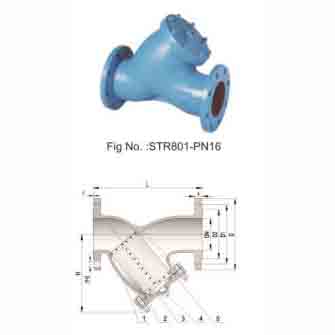

Fig No.: STR801-PN16
TECHNICAL REQUIREMENT:
- Face to Face dimensions: Conform to EN558-1 list 1
- Flange dimensions: Conform to EN1092-2 PN16
- Testing: Conform to EN12266-1
NOTES:
- DN50 – DN300 meshes Φ1.5; DN350 – DN600 meshes Φ3.0.
- It can be manufactured according to customer’s requirement.
- DN450 – DN600 Body and bonnet’s materials are EN-GJS-450-10.
MATERIALS OF PARTS
| NO. | PART NAME | MATERIAL |
|---|---|---|
| 1 | BODY | ASTM A536 65-45-12 |
| 2 | SCREEN | SS304 |
| 3 | BONNET | ASTM A536 65-45-12 |
| 4 | PLUG | MALLEABLE CAST IRON |
| 5 | BONNET GASKET | GRAPHITE +08F |
DIMENSIONS DATA (MM)
| DN | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L | 230 | 290 | 310 | 350 | 400 | 480 | 600 | 730 | 850 | 980 | 1100 | 1200 | 1250 | 1450 |
| D | 165 | 185 | 200 | 220 | 250 | 285 | 340 | 405 | 520 | 580 | 640 | 715 | 840 | |
| D1 | 125 | 145 | 160 | 180 | 210 | 240 | 295 | 355 | 410 | 470 | 525 | 585 | 650 | 770 |
| D2 | 99 | 118 | 132 | 156 | 184 | 211 | 266 | 319 | 370 | 429 | 480 | 548 | 609 | 720 |
| b | 20 | 20 | 22 | 24 | 26 | 26 | 30 | 32 | 32 | 36 | 38 | 30 | 31.5 | 36 |
| n-d | 4-19 | 4-19 | 8-19 | 8-19 | 8-23 | 8-23 | 12-23 | 12-28 | 12-28 | 16-28 | 16-31 | 20-31 | 20-34 | 20-37 |
| f | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| H | 152 | 186.5 | 203 | 250 | 288 | 325 | 405 | 496 | 574 | 660 | 727 | 826.5 | 884 | 1022 |
Attention please: The description might be incorrect, please contact us for confirmation.
