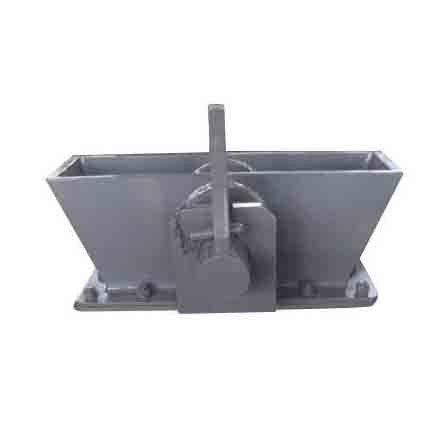

China Plug Type Anchor Releaser JIS F2025-1992 – Certified Marine Release System
Crafted from high-quality casting steel with a polished finish, our Plug Type Anchor Releaser combines smooth surface quality, elegant design, and long-lasting durability. Compliant with JIS F2025-1992 standards, this releaser is available with major international certifications including CCS, DNV, ABS, LR, GL, KR, BV, and RINA. We also offer customization in materials such as stainless steel or other requested grades, ensuring each unit meets your specific operational and regulatory requirements.
Technical Specifications – Plug Type Anchor Releaser JIS F2025-1992
| Product No. | Model | Anchor Chain Diameter (mm) | L1 (mm) | L3 (mm) | B2 (mm) | H1 (mm) | H2 (mm) | D1 (mm) | D2 (mm) | h1 (mm) | d1 (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| LCA-001 | 52 | 50-52 | 384 | 460 | 238 | 63 | 82 | 54 | 57 | 190 | 16 | 40.5 |
| LCA-002 | 56 | 54-56 | 420 | 486 | 246 | 69 | 88 | 58 | 61 | 194 | 16 | 48 |
| LCA-003 | 60 | 58-60 | 448 | 504 | 254 | 74 | 94 | 62 | 65 | 198 | 16 | 53.9 |
| LCA-004 | 64 | 62-64 | 478 | 524 | 264 | 80 | 100 | 66 | 69 | 202 | 16 | 60 |
| LCA-005 | 68 | 66-68 | 504 | 542 | 272 | 84 | 107 | 70 | 73 | 207 | 16 | 70.8 |
| LCA-006 | 73 | 70-73 | 540 | 570 | 282 | 87 | 114 | 75 | 78 | 212 | 19 | 81.4 |
| LCA-007 | 78 | 76-78 | 576 | 594 | 292 | 95 | 122 | 80 | 83 | 217 | 19 | 92.8 |
| LCA-008 | 84 | 81-84 | 624 | 628 | 302 | 102 | 131 | 85 | 88 | 223 | 19 | 106 |
| LCA-009 | 90 | 87-90 | 670 | 660 | 316 | 110 | 140 | 90 | 93 | 230 | 19 | 128 |
| LCA-010 | 95 | 92-95 | 708 | 686 | 330 | 118 | 148 | 95 | 98 | 235 | 22 | 146 |
| LCA-011 | 102 | 98-102 | 762 | 724 | 346 | 128 | 158 | 100 | 103 | 242 | 22 | 188 |
| LCA-012 | 111 | 105-111 | 828 | 770 | 364 | 139 | 171 | 110 | 110 | 251 | 22 | 231 |
| LCA-013 | 120 | 114-120 | 892 | 810 | 386 | 150 | 184 | 120 | 123 | 260 | 22 | 274 |
Attention please: The description was copied from different cooperating manufacturers. The description may be different with the goods, please check with us when order.
