Certified Marine Pilot Ladder – Technical Specifications
Compliance & Approvals
✔ DNV Type-Approved (Quality Verified)
✔ International Standards:
-
CB/T3142-94 (China)
-
ISO 799:2004
-
IMO A.889(21)
-
JIS F2615:1982 (Japan)
-
SOLAS 1983 Revision
Material Specifications
-
Steps: Solid hardwood (teak/oak)
-
Anti-Twist Boards: Reinforced hardwood
-
Ropes: Manila hemp (natural fiber, 24mm+ diameter)
-
Thimbles:
-
Plastic-coated (UV resistant)
-
Steel/Stainless Steel core (structural integrity)
-
-
Bottom Steps (4 pcs): Slip-resistant rubber

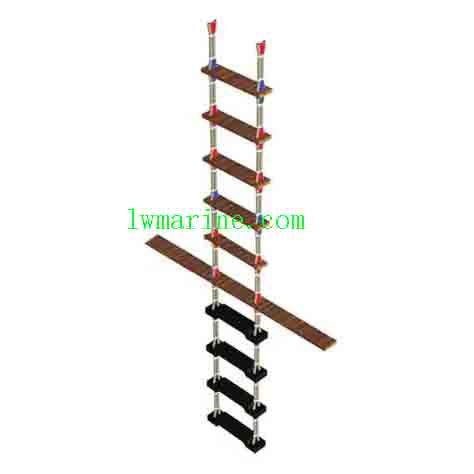

Pilot Ladder
Parameters:
| No of Step | L(mm) | L1(mm) | No of twist prevention board | prevention board place | Weight(kg) |
| 6 | 1860 | 1550 | 1 | the 5th board | 22 |
| 7 | 2170 | 1860 | 25 | ||
| 8 | 2480 | 2170 | 28 | ||
| 9 | 2790 | 2480 | 31 | ||
| 10 | 3100 | 2790 | 34 | ||
| 11 | 3410 | 3100 | 37 | ||
| 12 | 3720 | 3410 | 40 | ||
| 13 | 4030 | 3720 | 43 | ||
| 14 | 4340 | 4030 | 2 | the 5th and 12th boards | 52 |
| 15 | 4650 | 4340 | the 5th and 13th boards | 55 | |
| 16 | 4960 | 4650 | the 5the and 14th boards | 58 | |
| 17 | 5270 | 4960 | 61 | ||
| 18 | 5580 | 5270 | 64 | ||
| 19 | 5890 | 2280 | 67 | ||
| 20 | 6200 | 5890 | 70 | ||
| 21 | 6510 | 6200 | 73 | ||
| 22 | 6820 | 6510 | 76 | ||
| 23 | 7130 | 6820 | 3 | the 5th,14th and 21st boards | 86 |
| 24 | 7440 | 7130 | the 5th,14th and 22nd boards | 89 | |
| 25 | 7750 | 7440 | the 5th,14th and 23rd boards | 92 | |
| 26 | 8060 | 7750 | 95 | ||
| 27 | 8670 | 8060 | 98 | ||
| 28 | 8680 | 8370 | 101 | ||
| 29 | 8990 | 8680 | 104 | ||
| 30 | 9300 | 8990 | 107 |
The description/sizes may be different with goods, please check with us when order.
