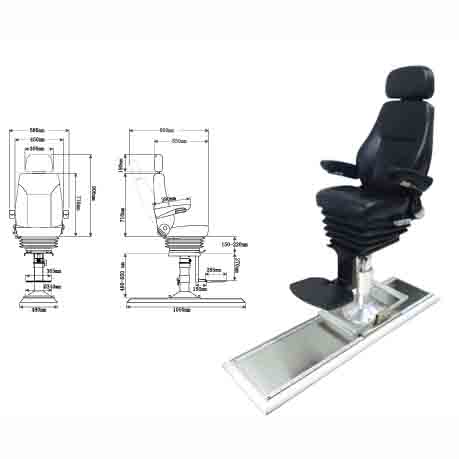

PILOT CHAIR FOR SHIP
HA – B – 05
The Seat is stylish with a sleek profile. Each Seat uses plush, high – density foam cushions covered in premium grade vinyl. The high backrest, headrest, foot rest and armrests are all adjustable, giving complete customisation. Ergonomically designed to provide optimal posture, with lateral and lumbar support reducing fatigue and improving comfort. An optional, floor mounting slide is available to optimise access and seating position.
Pilot Seats
| Part No. | Description | Colour | Vinyl Swatch No. |
|---|---|---|---|
| HA – B – 05 | Pilot Seat Only | Black | 016# |
| HA – D – 01.02 | Air Ride Pedestal & Footrest Only – Suits Seafarer Seat | ||
| HA – P – 01 | Stainless Steel Seat Slide Pilot Floor Mount Relax 600mm Travel |
Features:
- Plush high – density foam padding providing ultimate comfort.
- Premium quality UV stabilised upholstery.
- Robust reinforced frame.
- Adjustable backrest, headrest, seat rest and armrests.
- High back and contoured sides offer excellent support and comfort.
- Height adjustable Air Ride Pedestal.
- Pedestal top, fore and aft seat slide with 360° swivel.
- Full – length foldable footrest integrated into the seat base.
Technical Specifications:
- Seat:
- Adjustable Head Rest
- Adjustable Height: 140mm
- Adjustable Armrest: 0° to 110°
- Adjustable Backrest: 70° to 150°
- Adjustable Height Range: 150mm to 220mm
- Overall Dimensions: L 800mm x W 585mm x H 1780mm
- Adjustable Height (another range): 480mm to 650mm
- Pedestal:
- Base: φ307mm & Shaft φ100mm
- Suspension: Air Ride
- Adjustable Angle: 90°
- Footrest:
- Dimensions: L 285mm x W 365mm
- Travel: 600mm
- Slide:
- Dimensions: 480mm x 1050mm
- Frame: Carbon Steel/304G Stainless Steel
- Upholstery: Marine Grade Vinyl
- Weight: 50 Kg
Attention please: The description might be incorrect, please contact us for confirmation.
