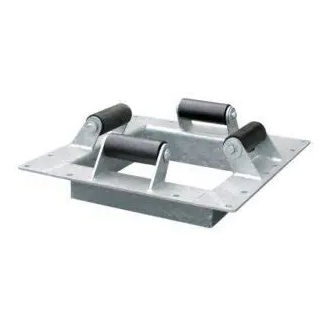

China Pile Guide Roller – Durable Marine Docking and Berthing Protection System
Our China-manufactured Pile Guide Roller provides essential vessel guidance and hull protection in ports, docks, and restricted waterways. These robust marine rollers are specifically engineered for installation at berth corners, dock entrances, dry dock walls, and narrow channels where precise vessel maneuvering is required. Featuring agile-rotation capabilities and easy-installation design, they effectively prevent hull damage while ensuring smooth navigation in confined marine environments.
Product Features & Applications
-
Comprehensive Port Protection: Ideal for berth corners, dock entrances, and dry dock installations
-
Enhanced Vessel Guidance: Provides safe navigation through restricted channels and narrow passages
-
Agile Rotation System: Ensures smooth operation and reduced friction during vessel contact
-
Easy Installation Design: Simplified mounting process reduces installation time and costs
-
Hull Damage Prevention: Protects both vessel hulls and dock structures from impact damage
-
Durable Marine Construction: Built to withstand continuous use in harsh saltwater environments
Technical Specifications – Type D1 Rolling Rubber Fender
| Specification | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) |
|---|---|---|---|---|---|---|
| D1-060-20 | 600 | 200 | 320 | 110 | 420 | 695 |
| D1-075-25 | 750 | 250 | 400 | 140 | 510 | 870 |
| D1-090-30 | 900 | 300 | 480 | 165 | 610 | 1040 |
| D1-120-40 | 1200 | 400 | 640 | 220 | 820 | 1380 |
| D1-150-50 | 1500 | 500 | 800 | 275 | 1010 | 1740 |
| D1-180-60 | 1800 | 600 | 960 | 330 | 1210 | 2080 |
| D1-210-70 | 2100 | 700 | 1155 | 385 | 1410 | 2440 |
| D1-240-80 | 2400 | 800 | 1280 | 440 | 1610 | 2770 |
Technical Specifications – Type D2 Rolling Rubber Fender
| Specification | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) |
|---|---|---|---|---|---|---|
| D2-060-20 | 600 | 200 | 320 | 110 | 770 | 695 |
| D2-075-25 | 750 | 250 | 400 | 140 | 935 | 870 |
| D2-090-30 | 900 | 300 | 480 | 165 | 1120 | 1040 |
| D2-120-40 | 1200 | 400 | 640 | 220 | 1500 | 1380 |
| D2-150-50 | 1500 | 500 | 800 | 275 | 1850 | 1740 |
| D2-180-60 | 1800 | 600 | 960 | 330 | 2215 | 2080 |
| D2-210-70 | 2100 | 700 | 1155 | 385 | 2590 | 2440 |
| D2-240-80 | 2400 | 800 | 1280 | 440 | 2950 | 2770 |
The description/sizes may be different with goods, please check with us when order.
