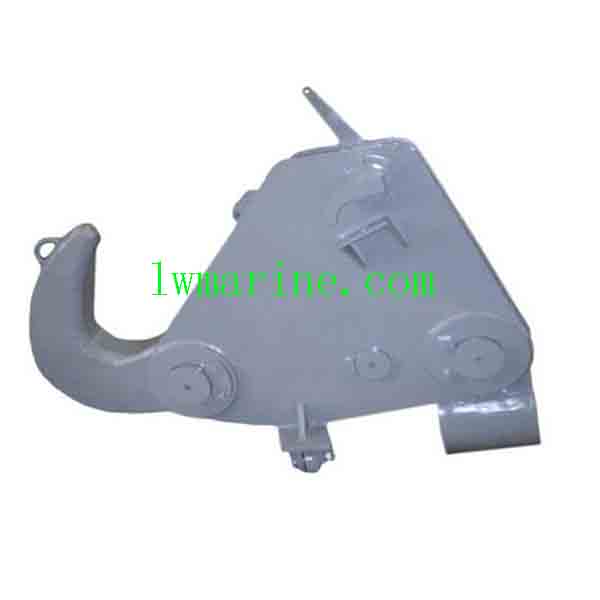

China-Made Multifunctional Pier Marine Towing Hook for Emergency Ship Handling
Engineered for reliability in critical situations, our Multifunctional Pier Marine Towing Hook ensures vessels can be towed safely and efficiently during emergency operations. This robust, China-manufactured hook is designed for quick and easy handling, featuring a rapid-release mechanism that allows for immediate deployment and disengagement when every second counts. Ideal for port tugs, pilot boats, and offshore support vessels, it provides the essential safety link for ship rescue and harbor towing duties.
Product Highlights & Specifications:
-
Rapid-Release Design: Enables quick and safe release under load, enhancing operational safety during emergency towing.
-
Robust Construction: Built from high-strength forged steel to withstand extreme forces and harsh marine environments.
-
Safety Assurance: Provides a reliable connection point for ship handling, emergency towing, and berthing assistance.
-
Durable Corrosion Protection: Finished with advanced coatings (e.g., hot-dip galvanizing) for maximum resistance to seawater corrosion.
-
Model Range: Available in multiple capacities from ETH-30 to ETH-100 to suit various vessel sizes and towing requirements.
Detailed Technical Specifications:
| Model Type | Safe Working Load (SWL) | Dimension A (mm) | Dimension B (mm) | Dimension L (mm) | Radius R1 (mm) | Radius R2 (mm) |
|---|---|---|---|---|---|---|
| ETH-30 | 30 t | 210 | 340 | 1050 | 65 | 430 |
| ETH-40 | 40 t | 220 | 345 | 1100 | 65 | 450 |
| ETH-50 | 50 t | 276 | 448 | 1332 | 80 | 577 |
| ETH-60 | 60 t | 295 | 475 | 1415 | 85 | 613 |
| ETH-80 | 80 t | 350 | 560 | 1680 | 100 | 721 |
| ETH-100 | 100 t | 450 | 630 | 2100 | 125 | 921 |
Common Applications:
-
Emergency Towing Systems for Ports and Harbors
-
Ship Handling and Berthing Operations
-
Mooring and Salvage Vessel Equipment
-
Offshore Support Vessel Deck Fitting
-
Harbor Pilot Boat Towing Solutions
The description/sizes may be different with goods, please check with us when order.
