Marine Opening Side Scuttle Without Deadlight – Lightweight & Functional
Streamlined Porthole Solutions for Modern Vessels

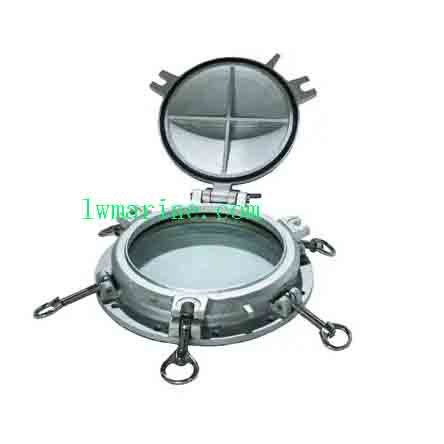

Our Opening Side Scuttle Without Deadlight offers simple, lightweight ventilation for sea-going ships, naval vessels, and inland watercraft. These practical portholes provide easy operation and natural airflow while maintaining watertight integrity.
Key Features & Benefits
✔ Three Material Options:
-
Aluminum (lightest option)
-
Brass (classic marine look)
-
Steel (most economical)
✔ Customizable Configurations:
-
Transparent or frosted glass
-
Multiple size options (see table)
-
Bolted installation
✔ Quality Assurance:
-
Manufactured to GB/T14413-93 standard
-
Optional classification society certifications
-
Precision engineering for marine use
Technical Specifications
Standard Dimensions
| Clear Size (D) | D1 | D3 | D4 | D5 | h | t | gmax | Bolt | Cutout |
|---|---|---|---|---|---|---|---|---|---|
| Φ200 | Φ245 | Φ250 | Φ350 | Φ310 | 155 | 8 | 50 | M16(12) | 253 |
| Φ250 | Φ295 | Φ305 | Φ400 | Φ364 | 182 | 8 | 47.5 | M16 | 308 |
| Φ300 | Φ350 | Φ360 | Φ450 | Φ414 | 207 | 10 | 45 | M16 | 363 |
| Φ350 | Φ400 | Φ410 | Φ500 | Φ464 | 232 | 12 | 45 | M18 | 413 |
| Φ400 | Φ450 | Φ460 | Φ550 | Φ514 | 257 | 12 | 45 | M18 | 463 |
| Φ450 | Φ500 | Φ510 | Φ600 | Φ564 | 282 | 15 | 45 | M20 | 513 |
The description/sizes may be different with goods, please check with us when order.
