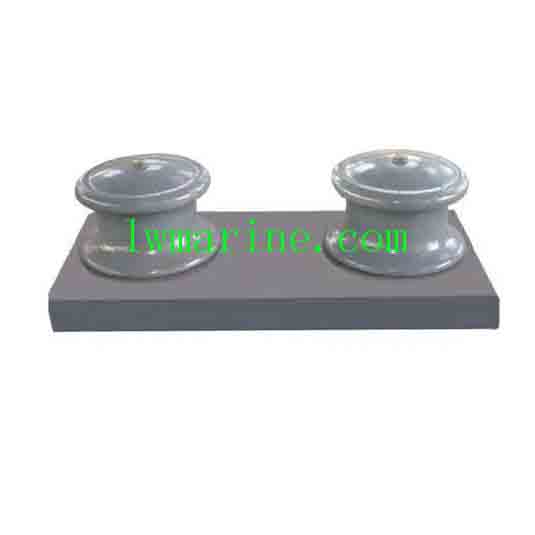

JIS F2014-1987 Open Roller Fairlead Type AF/AS – Precision Japanese-Engineered Mooring Solution
Optimized Two-Roller Design for Superior Rope Guidance
Our Open Roller Fairlead (Type AF/AS) is manufactured to exacting JIS F2014-1987 standards, providing reliable performance for both wire ropes and hemp ropes.
✔ Smooth Two-Roller System – Minimizes rope abrasion and wear
✔ Wide Size Range (150–450mm) – Accommodates various rope diameters
✔ Open-Type Design – Allows for easy rope positioning and inspection
✔ JIS Standard Compliance – Guaranteed quality for Japanese marine applications
Key Features & Benefits
🔹 Model: Open Roller Fairlead Type AF/AS
🔹 Rollers: 2 precision-engineered rollers for optimal rope movement
🔹 Material: Heavy-duty cast steel & steel plate construction
🔹 Nominal Diameter: 150mm–450mm (custom sizes available)
🔹 Standards: Fully compliant with JIS F2014-1987
Parameters:
| Type | Nominal | D | L | l | l1 | Nominal |
| Dia. (mm) | (mm) | (mm) | (mm) | (mm) | Dia. (mm) | |
| AF&AS | 150 | 150 | 740 | 452 | 160 | 150 |
| 200 | 200 | 930 | 530 | 200 | 200 | |
| 250 | 250 | 1100 | 640 | 230 | 250 | |
| 300 | 300 | 1270 | 750 | 260 | 300 | |
| 350 | 350 | 1440 | 860 | 290 | 350 | |
| 400 | 400 | 1610 | 970 | 320 | 400 | |
| AS | 450 | 450 | 1800 | 1080 | 360 | 450 |
The description/sizes may be different with goods, please check with us when order.
