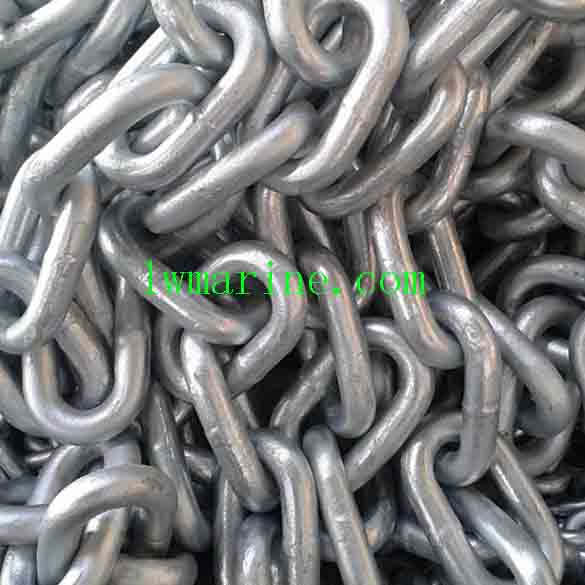

Open Link Anchor Chain

Marine Open Link (Studless) Anchor Chain

Unlike traditional stud link chains, our marine open link anchor chain offers a strategic lightweight alternative designed for vessels and applications where reduced weight and easier handling are prioritized over maximum breaking strength. This studless anchor chain provides an intelligent solution for operators seeking to optimize vessel performance, reduce top weight, and simplify deployment without compromising on reliability for its intended applications.

While a studless mooring chain is not typically specified for primary anchoring on large commercial vessels (where maximum holding power is critical), it serves an essential role in a wide variety of light craft and workboat operations and secondary marine applications. Its design offers significant practical advantages.

Key Applications:

• Temporary mooring systems for small harbors and marinas

• Light craft and workboats including small tugs, fishing vessels, and barges

• Secondary marine applications such as auxiliary lines and buoy moorings

• Specialized industrial uses in non-critical, weight-sensitive environments

• Anchor rode systems for smaller vessels where ease of handling is paramount

Key Characteristics:

• ✔ 15-20% Lighter: Significantly reduces top weight compared to equivalent stud link chains, improving vessel stability and fuel efficiency.

• ✔ Easier Handling and Storage: The open link design allows for compact storage and is much easier to manually handle or pass through small, simple windlasses.

• ✔ Compatible with Larger Shackles: The open link profile often allows for direct connection with larger shackles without the need for special end links, simplifying rigging.

• ✔ Cost-Effective Solution: Provides a reliable and economical option for non-critical applications where the full strength of a stud link chain is not required.

Technical Specifications

Performance Parameters

Below are the detailed specifications for our range of lightweight anchor chain. Please note the test load values for BM2 (Grade 2) and BM3 (Grade 3) materials.

Frequently Asked Questions (FAQs)

Q1: What is the main difference between an open link chain and a stud link chain?
A: The fundamental difference is the presence of a “stud”—a solid bar across the center of each link in a stud link chain. This stud prevents the link from deforming under extreme load and adds strength. An open link chain (or studless chain) has no stud, making it lighter and more flexible, but with a breaking load approximately 20-30% lower than a stud link chain of the same diameter and material grade.

Q2: When should I choose an open link anchor chain over a standard stud link chain?
A: You should choose our marine open link anchor chain when weight savings and ease of handling are primary concerns. It is an excellent choice for light craft and workboats, temporary moorings, and as a secondary or auxiliary line. If your application involves permanent mooring of a large vessel or primary anchoring in severe conditions where maximum holding power is critical, a stud link chain would be the more appropriate selection.

Q3: Is this chain strong enough for anchoring a small workboat or barge?
A: Yes, for many light craft and workboats, an open link chain provides more than adequate strength for anchoring and mooring duties. The key is to select the correct diameter and grade (Grade 2 or Grade 3) based on the vessel’s displacement and expected environmental loads. It offers a practical balance of strength and manageability for smaller vessels.

Q4: What are the advantages of the open link design for handling and storage?
A: The absence of the stud means the links are smoother and have a more consistent profile. This makes the chain significantly easier to coil, store, and handle manually. It can also be used with smaller, simpler windlasses or capstans that might not be designed for the more rigid profile of a stud link chain. This easier handling is a major benefit for operators who frequently deploy and retrieve their mooring lines.

Q5: Can I connect this open link chain directly to a standard anchor shackle?
A: Yes, a key advantage is its compatibility with larger shackles without end links. The open internal dimensions of the link often allow for a standard anchor shackle to be connected directly. However, you must always ensure the shackle’s body and pin dimensions are correctly matched to the link size to maintain the full working load limit of the assembly. When in doubt, consult the shackle manufacturer’s recommendations.

Q6: What surface finish do you recommend for long-term use in saltwater?
A: For any chain used in a saltwater environment, we strongly recommend the hot-dip galvanized finish. This process applies a thick, metallurgically bonded layer of zinc that provides exceptional corrosion resistance. It will significantly outlast a standard painted finish, protecting the steel from rust and ensuring a much longer service life for your lightweight anchor chain.
