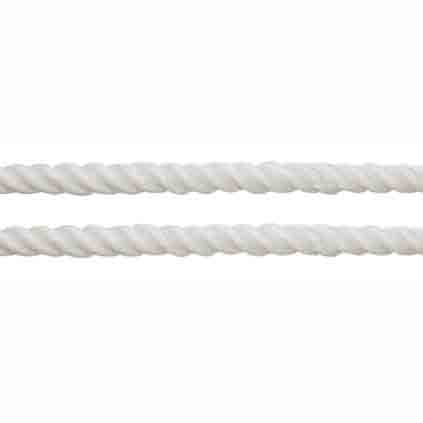

NYLON THREE – STRAND ROPE
Product Information
- Material: Nylon
- Density: 1.14g/cm³ (Sinking)
- Melting Point: 218 – 258°C
- Elongation at Break: 19 – 23%
- Abrasion Resistance: Excellent
- UV Resistance: Good
- Chemical Resistance: Good
This product is water – absorbing, has high strength, great elongation rate, and good abrasion resistance. Compared with other chemical fiber ropes, it has the best shock absorption, longer service life, and better resistance to UV and other corrosion.
Application: Ship mooring, pelagic fishing, sea farming.
Parameter Table
| Diameter (mm) | Size (Circ.inch) | Weight (g/m) | Weight (kg/220m) | Breaking Strength (kN) | Breaking Strength (ton) |
|---|---|---|---|---|---|
| 4 | 1/2 | 10 | 2.20 | 2.6 | 0.27 |
| 6 | 3/4 | 22 | 4.84 | 6.9 | 0.71 |
| 8 | 1 | 40 | 8.80 | 10.9 | 1.11 |
| 10 | 1 – 1/4 | 62 | 13.64 | 15.7 | 1.60 |
| 12 | 1 – 1/2 | 89 | 19.58 | 24.1 | 2.46 |
| 14 | 1 – 3/4 | 121 | 26.62 | 33.0 | 3.37 |
| 16 | 2 | 158 | 34.76 | 42.5 | 4.34 |
| 18 | 2 – 1/4 | 200 | 44.00 | 53.9 | 5.50 |
| 20 | 2 – 1/2 | 247 | 54.34 | 66.7 | 6.81 |
| 22 | 2 – 3/4 | 299 | 65.78 | 80.4 | 8.20 |
| 24 | 3 | 355 | 78.10 | 96.3 | 9.83 |
| 26 | 3 – 1/4 | 417 | 91.74 | 111.5 | 11.38 |
| 28 | 3 – 1/2 | 484 | 106.48 | 127.0 | 12.96 |
| 30 | 3 – 3/4 | 555 | 122.10 | 143.0 | 14.59 |
| 32 | 4 | 632 | 139.04 | 161.0 | 16.43 |
| 36 | 4 – 1/2 | 800 | 176.00 | 200.0 | 20.41 |
| 38 | 4 – 3/4 | 870 | 191.40 | 221.0 | 22.54 |
| 40 | 5 | 987 | 217.14 | 241.0 | 24.59 |
| 44 | 5 – 1/2 | 1190 | 261.80 | 289.0 | 29.49 |
| 48 | 6 | 1420 | 312.40 | 338.0 | 34.49 |
| 52 | 6 – 1/2 | 1670 | 367.40 | 393.0 | 40.10 |
| 56 | 7 | 1930 | 424.60 | 450.0 | 45.92 |
Other sizes are available upon request.
Attention please: The description may be different with the product, please contact us for quotation.
