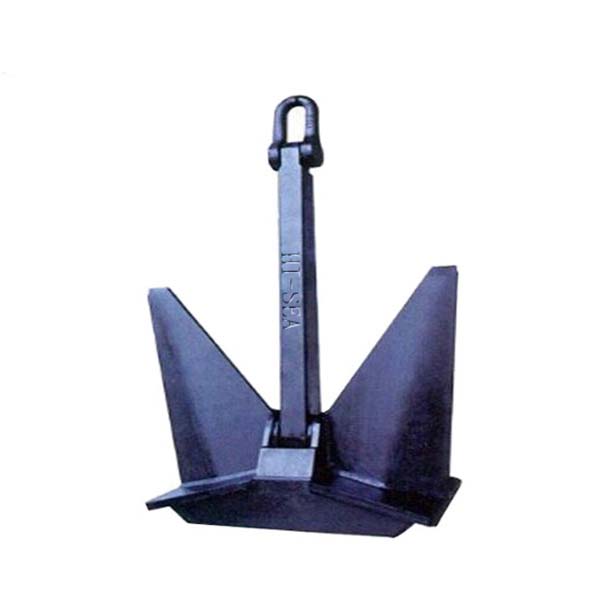

N Type HHP Anchor (High Holding Power)
Professional Marine Anchoring Solution
Company Introduction
With over 25 years of experience since 1996, we specialize in manufacturing premium marine anchors including:
-
N Type HHP Anchor
-
Stock anchors
-
Stockless anchors
-
Offshore anchors
Our competitive advantages in sourcing, quality control and customer service make us your most reliable marine anchor partner in China.
Product Specifications
N-Type HHP Anchor Features:
-
Type: High Holding Power (HHP) anchor
-
Material: High-grade ZG230-450H cast steel
-
Weight Range: 12kg – 20,625kg (covering all vessel sizes)
-
Surface Treatment: Durable black bitumen paint
-
Packaging Options:
-
Carton
-
Plywood case
-
Plywood pallet
-
Nude packing
-
Quality Certifications:
CCS | ABS | BV | LR | NK | RINA
| D | E | F | A | B | C | Weight (kg) |
| (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | |
| 65 | 383 | 155 | 325 | 275 | 252 | 12 |
| 75 | 455 | 185 | 385 | 325 | 298 | 20 |
| 80 | 485 | 200 | 410 | 350 | 318 | 25 |
| 95 | 570 | 235 | 480 | 410 | 372 | 40 |
| 110 | 655 | 270 | 555 | 470 | 429 | 60 |
| 120 | 720 | 295 | 608 | 515 | 470 | 80 |
| 130 | 775 | 320 | 655 | 555 | 506 | 100 |
| 135 | 825 | 340 | 698 | 595 | 540 | 120 |
| 150 | 905 | 370 | 765 | 650 | 592 | 160 |
| 155 | 940 | 385 | 795 | 675 | 615 | 180 |
| 160 | 978 | 400 | 825 | 700 | 640 | 200 |
| 175 | 1040 | 425 | 880 | 745 | 680 | 240 |
| 180 | 1092 | 450 | 925 | 780 | 715 | 280 |
| 190 | 1140 | 470 | 964 | 820 | 745 | 320 |
| 195 | 1190 | 490 | 1005 | 855 | 780 | 360 |
| 205 | 1230 | 505 | 1040 | 885 | 805 | 400 |
| 210 | 1270 | 520 | 1074 | 910 | 830 | 440 |
| 215 | 1305 | 535 | 1105 | 940 | 855 | 480 |
| 220 | 1340 | 550 | 1133 | 960 | 875 | 520 |
| 230 | 1375 | 565 | 1165 | 985 | 900 | 560 |
| 235 | 1410 | 580 | 1190 | 1010 | 920 | 600 |
| 240 | 1440 | 590 | 1216 | 1035 | 940 | 640 |
| 250 | 1495 | 615 | 1265 | 1075 | 978 | 720 |
| 255 | 1550 | 635 | 1313 | 1115 | 1015 | 800 |
| 270 | 1615 | 665 | 1365 | 1160 | 1055 | 900 |
| 275 | 1670 | 670 | 1410 | 1200 | 1090 | 1000 |
| 300 | 1800 | 740 | 1520 | 1290 | 1175 | 1250 |
| 315 | 1910 | 785 | 1615 | 1370 | 1250 | 1500 |
| 335 | 2015 | 830 | 1705 | 1445 | 1320 | 1750 |
| 360 | 2185 | 900 | 1850 | 1570 | 1430 | 2250 |
| 370 | 2265 | 920 | 1920 | 1630 | 1485 | 2500 |
| 372 | 2312 | 925 | 1954 | 1664 | 1516 | 2655 |
| 380 | 2364 | 945 | 1996 | 1700 | 1550 | 2835 |
| 390 | 2418 | 968 | 2042 | 1735 | 1585 | 3040 |
| 398 | 2471 | 988 | 2086 | 1773 | 1620 | 3240 |
| 406 | 2522 | 1009 | 2129 | 1809 | 1653 | 3445 |
| 415 | 2575 | 1030 | 2174 | 1847 | 1689 | 3670 |
| 425 | 2637 | 1055 | 2226 | 1892 | 1730 | 3940 |
| 434 | 2696 | 1078 | 2276 | 1934 | 1768 | 4210 |
| 444 | 2757 | 1103 | 2328 | 1978 | 1808 | 4500 |
| 455 | 2824 | 1130 | 2385 | 2026 | 1852 | 4840 |
| 465 | 2889 | 1155 | 2439 | 2072 | 1894 | 5175 |
| 475 | 2950 | 1180 | 2491 | 2116 | 1934 | 5515 |
| 485 | 3009 | 1204 | 2541 | 2159 | 1973 | 5850 |
| 495 | 3072 | 1229 | 2594 | 2204 | 2014 | 6225 |
| 503 | 3121 | 1248 | 2635 | 2239 | 2046 | 6525 |
| 514 | 3190 | 1276 | 2695 | 2290 | 2092 | 6975 |
| 525 | 3258 | 1303 | 2751 | 2337 | 2136 | 7425 |
| 535 | 3323 | 1329 | 2805 | 2384 | 2178 | 7875 |
| 545 | 3385 | 1354 | 2858 | 2428 | 2219 | 8325 |
| 555 | 3445 | 1378 | 2908 | 2471 | 2258 | 8775 |
| 564 | 3502 | 1401 | 2958 | 2512 | 2296 | 9225 |
| 573 | 3558 | 1423 | 3004 | 2553 | 2333 | 9675 |
| 582 | 3613 | 1445 | 3050 | 2592 | 2369 | 10125 |
| 590 | 3666 | 1466 | 3095 | 2630 | 2403 | 10575 |
| 617 | 3831 | 1533 | 3235 | 2748 | 2512 | 12075 |
| 634 | 3962 | 1585 | 3345 | 2842 | 2598 | 13350 |
| 649 | 4035 | 1614 | 3406 | 2895 | 2645 | 14100 |
| 669 | 4155 | 1662 | 3508 | 2981 | 2724 | 15400 |
| 680 | 4220 | 1687 | 3563 | 3027 | 2766 | 16125 |
| 696 | 4315 | 1726 | 3643 | 3096 | 2829 | 17250 |
| 710 | 4407 | 1762 | 3712 | 3162 | 2889 | 18375 |
| 725 | 4495 | 1798 | 3795 | 3225 | 2947 | 19500 |
| 738 | 4580 | 1832 | 3867 | 3286 | 3003 | 20625 |
The description/sizes may be different with goods, please check with us when order.
