MSS SP-67 300PSI GROOVED-END BUTTERFLY VALVE

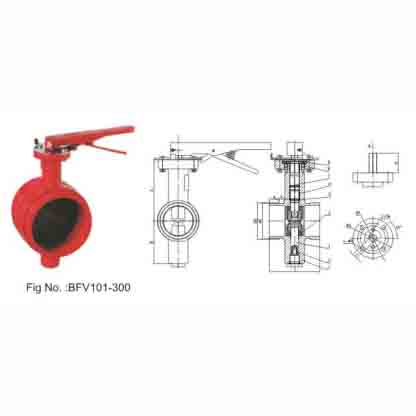

Fig No.: BFV101-300
TECHNICAL REQUIREMENT:
- Design and Manufacture: Conform to MSS SP-67
- Groove ends dimensions: Conform to AWWA C606
- Face to Face dimensions: Conform to MSS SP-67 Table 4
- Testing: Conform to MSS SP-67
- Driving mode: lever, worm actuator, electric, pneumatic
MATERIALS OF PARTS
| NO. | PART NAME | MATERIAL | OPTIONAL MATERIAL |
|---|---|---|---|
| 1 | BODY | ASTM A536 65-45-12 | |
| 2 | SCREW END | CARBON STEEL | |
| 3 | DOWN SHAFT | ASTM A564 17-4PH | ASTM A276 420 |
| 4 | DISC | DI+NBR | DI+EPDM |
| 5 | O RING | NBR | EPDM |
| 6 | BUSHING | PTFE | |
| 7 | UPPER SHAFT | ASTM A564 17-4PH | ASTM A276 420 |
| 8 | BOLT | CARBON STEEL | ASTM A276 304 |
| 9 | PLATE | CARBON STEEL | ASTM A276 304 |
DIMENSIONS DATA (MM)
| DN | A | B | C | ΦD | H | ΦE | ΦF | ΦG | 4 – ΦN | d | a | b |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DN50 | 100 | 62 | 81 | 60.3 | 32 | 57.15 | 65 | 50 | 4 – Φ7 | 9 | 15.88 | 7.95 |
| DN65 | 106 | 64 | 97 | 73 | 32 | 69.09 | 65 | 50 | 4 – Φ7 | 9 | 15.88 | 7.95 |
| DN80 | 112.5 | 73 | 87 | 88.9 | 32 | 84.94 | 65 | 50 | 4 – Φ7 | 9 | 15.88 | 7.95 |
| DN100 | 135 | 97 | 116 | 114.3 | 32 | 110.08 | 90 | 70 | 4 – Φ10 | 11 | 15.88 | 9.53 |
| DN125 | 149 | 119 | 148 | 141.3 | 32 | 137.03 | 90 | 70 | 4 – Φ10 | 14 | 15.88 | 9.53 |
| DN150 | 167 | 132 | 148 | 168.3 | 32 | 163.96 | 90 | 70 | 4 – Φ10 | 14 | 15.88 | 9.53 |
| DN200 | 202 | 162 | 133 | 219.1 | 45 | 214.4 | 125 | 102 | 4 – Φ12 | 17 | 19.05 | 11.13 |
| DN250 | 228 | 189 | 159 | 273 | 45 | 268.27 | 125 | 102 | 4 – Φ12 | 22 | 19.05 | 12.7 |
| DN300 | 266 | 230 | 165 | 323.9 | 45 | 318.19 | 150 | 125 | 4 – Φ14 | 22 | 19.05 | 12.7 |
Attention please: The description might be incorrect, please contact us for confirmation.
