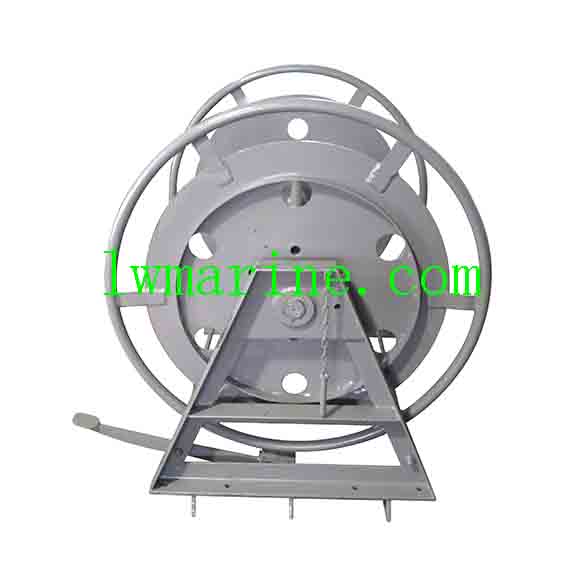

Mooring Steel Wire Reel CB/T 3468-1992 for Marine Applications
The CB/T 3468-1992 Mooring Steel Wire Reel is a high-quality marine equipment specifically designed for storing steel wire ropes on all types of ships. This robust reel is not suitable for towing or stranded cables, ensuring optimal performance in its intended application.
This standard marine ship rope reel comes in four distinct types: Type A, AW, B, and C. Except for Type AW, all other types are equipped with a crank handle for easy operation. For detailed specifications and drawings, please refer to the corresponding product parameters section.
Key Features and Benefits of CB/T 3468-1992 Mooring Steel Wire Reel:
- Marine Steel Wire Storage: Specifically designed to store steel wire ropes for marine applications.
- Four Types Available: Choose from Type A, AW, B, and C to suit your specific needs.
- Wide Diameter Range: Supports steel wires with diameters ranging from 13.0mm to 56mm.
- Extended Length Capacity: Can accommodate steel wires up to 300mm in length.
- Secure Bolting: Features 6 to 14 bolts for secure installation on ships.
- Durable Material: Constructed from high-quality steel for long-lasting performance.
- Defect-Free Surface: Smooth and clean surface without burrs, cracks, or sharp corners.
- Lubricated and Anti-Corrosive: Treated with lubrication and anti-corrosive painting to withstand harsh marine conditions.
- Certified Quality: Comes with certifications from ABS, CCS, BV, DNV, NK, etc., ensuring compliance with international standards.
- Customizable Solutions: Can meet customer’s special requirements for tailored marine equipment solutions.
CB/T 3468-1992 Marine Steel Wire Reel Type A Specifications:
| Model Type | Max. Diameter of Steel Wire (mm) | Dimensions (mm) | Bolts | Weight (kg) |
|---|---|---|---|---|
| A13 | 13.0 | D:170, D1:330, D2:530, L:350, L1:528, L2:584, L3:1161, B:560, B1:420, H:685, H1:670, Foot Bolts: M16, Quantity: 6 | 6 | 240 |
| A17 | 17 | … (similar detailed dimensions as above) | 8 | 180 |
| A21 | 20.5 | … | 8 | 190 |
| A26 | 26 | … | 8 | 205 |
| A32 | 32 | … | 8 | 220 |
CB/T 3468-1992 Marine Steel Wire Reel Type AW Specifications:
| Model Type | Max. Diameter of Steel Wire (mm) | Dimensions (mm) | Bolts | Weight (kg) |
|---|---|---|---|---|
| AW13 | 13 | Similar to Type A but without crank handle | 6 | 240 |
| AW17 | 17 | … | 8 | 180 |
| AW21 | 20.5 | … | 8 | 190 |
| AW26 | 26 | … | 8 | 205 |
| AW32 | 32 | … | 8 | 220 |

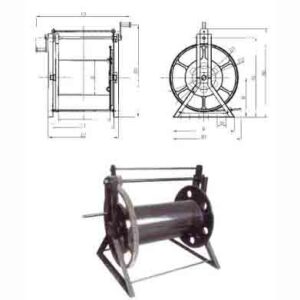

CB/T 3468-1992 Marine Steel Wire Reel Type B Specifications:
| Model Type | Max. Diameter of Steel Wire (mm) | Gear Modulus | Gear Tooth Numbers | Bolts | Weight (kg) |
|---|---|---|---|---|---|
| B39 | 39.0 | … (detailed gear specifications) | Large Gear: 22, Small Gear: 16 | M16, Quantity: 10 | 180 |
| B48 | 47.5 | … | Large Gear: 17, Small Gear: 12 | M16, Quantity: 12 | 200 |
CB/T 3468-1992 Marine Steel Wire Reel Type C Specifications:
| Model Type | Max. Diameter of Steel Wire (mm) | Gear Modulus | Gear Tooth Numbers | Bolts | Weight (kg) |
|---|---|---|---|---|---|
| C56 | 56 | 10 | Large Gear: 134, Small Gear: 18 | M24, Quantity: 14 | 643.75 |
Frequently Asked Questions (FAQs):
- What is the primary use of the CB/T 3468-1992 Mooring Steel Wire Reel?
- The primary use is to store steel wire ropes on ships for mooring purposes, ensuring secure and efficient anchoring.
- How many types of mooring steel wire reels are available under the CB/T 3468-1992 standard?
- There are four types available: Type A, AW, B, and C, each designed for specific applications and requirements.
- What is the maximum diameter of steel wire that the CB/T 3468-1992 reel can accommodate?
- The reel can accommodate steel wires with diameters ranging from 13.0mm to 56mm, depending on the specific model.
- Does the CB/T 3468-1992 reel come with any certifications?
- Yes, the reel comes with certifications from ABS, CCS, BV, DNV, NK, etc., ensuring compliance with international marine standards.
- Can the CB/T 3468-1992 reel be customized according to specific requirements?
- Yes, we offer customizable solutions to meet customer’s special requirements, providing tailored marine equipment solutions.
Attention please: The description was copied from different cooperating manufacturers. The description may be different with the goods, please check with us when order.
