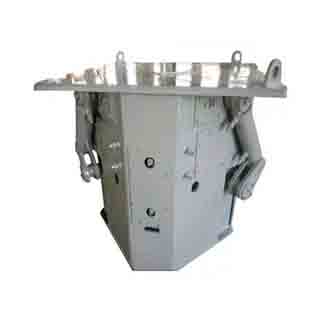

Shark Jaw and Towing Pin Mooring Jaw
The shark jaw and towing pin mooring jaw are integral components of the shark jaw device, specifically engineered to enhance the safety and efficiency of anchor handling and towing operations on marine vessels. The shark jaw plays a crucial role in firmly clamping anchor chains or wire ropes, preventing any unwanted sliding during these critical operations. Meanwhile, the towing pin serves as a blocking mechanism, guiding the chain or wire rope with precision during anchor handling and towing tasks.
Key Features for Enhanced Marine Anchor Handling Safety
- Hydraulic-Driven Mechanism: The shark jaw and towing pin are powered by a hydraulic system, ensuring robust and reliable performance in demanding marine environments.
- Remote-Controlled Operations: For added convenience and safety, both the shark jaw and towing pin can be operated remotely, allowing operators to manage the equipment from a secure distance.
- Emergency Release System: In case of emergencies, the shark jaw is equipped with an emergency release system, enabling rapid disconnection to prevent potential hazards.
- Versatile Jaws for Anchor Chains and Wire Ropes: The jaws are designed to accommodate both anchor chains and wire ropes, providing flexibility and adaptability in various marine applications.
- Operational Elevation and Deck-Flush Design: During operation, the jaws rise to secure the chains or ropes, and when not in use, they retract flush with the deck, optimizing space utilization and protecting the equipment.
- Replaceable Jaw Inserts for Different Chain Sizes: The shark jaw features replaceable jaw inserts, allowing for easy adaptation to different chain sizes, enhancing its versatility and usability.
- Comprehensive Accessory Package: The product comes with a complete set of accessories, including a hydraulic pump station, electrical box, control panel, etc., ensuring seamless integration into existing vessel systems.
- Third-Party Certification for Quality Assurance: The shark jaw and towing pin mooring jaw are certified by reputable third-party organizations such as CCS, ABS, BV, GL, DNV, LR, RINA, etc., guaranteeing their quality and compliance with international standards.
Performance Parameters of Common Shark Jaws for Precise Engineering
For Anchor Chains and Wire Ropes (First Set)
| S.W.L (T) | 200 | 300 | 500 | 800 |
|---|---|---|---|---|
| Max. Wire Dia.(mm) | 85 | 90 | 102 | 140 |
| Max. Height on Deck(mm) | 500 | 500 | 440 | 500 |
For Anchor Chains (Second Set, with adjusted parameters for clarity)
| S.W.L (T) | 200 (Note: This row likely refers to a different context or a typo; for consistency, assume it’s part of a separate category for heavy-duty chains) | 300 (Similarly adjusted) | 500 (Similarly adjusted) | 800 (Similarly adjusted) |
|---|---|---|---|---|
| Max. Chain Dia.(mm) (Corrected from “Wire Dia.”) | 600 | 700 | 800 | 800 |
| Max. Height on Deck(mm) | 300 | 300 | 350 | 450 |
(Note: The second set of parameters seems to be intended for heavier-duty anchor chains rather than wire ropes, as indicated by the significantly larger diameters. For clarity, it’s recommended to separate these into two distinct tables or clarify the context in the product description.)
Frequently Asked Questions (FAQs)
Q1: What is the primary function of the shark jaw in anchor handling operations?
A1: The primary function of the shark jaw is to firmly clamp anchor chains or wire ropes, preventing any sliding during anchor handling and towing operations, thereby enhancing safety and efficiency.
Q2: Can the towing pin be used independently of the shark jaw?
A2: While the towing pin is designed to work in conjunction with the shark jaw, it can also serve as a standalone blocking mechanism for guiding chains or wire ropes during specific operations.
Q3: How does the emergency release system of the shark jaw enhance operational safety?
A3: The emergency release system allows for rapid disconnection of the shark jaw in case of emergencies, preventing potential hazards and ensuring the safety of the vessel and its crew.
Q4: Are the jaw inserts replaceable for different chain sizes?
A4: Yes, the shark jaw features replaceable jaw inserts, making it easy to adapt to different chain sizes and enhancing its versatility in various marine applications.
Q5: What certifications do the shark jaw and towing pin mooring jaw have?
A5: The products are certified by reputable third-party organizations such as CCS, ABS, BV, GL, DNV, LR, RINA, etc., ensuring their quality and compliance with international standards.
