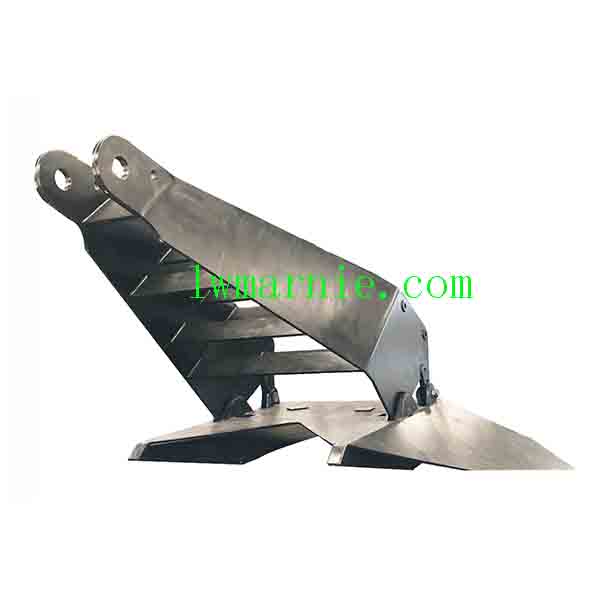

High Holding Power MK6 Anchor – Unrivaled Performance for Heavy Vessels
4X the Holding Power of Standard Anchors
The HHP MK6 Anchor delivers exceptional seabed grip, providing over four times the holding capacity of conventional stockless anchors at the same weight—ensuring maximum security for large ships in all conditions.
Key Benefits
✔ Ultimate Holding Strength – 4X stronger than standard stockless anchors
✔ Engineered for Large Ships – Critical for port maneuvers, tight turns, and heavy vessels
✔ All-Weather Reliability – Maintains position in storms, strong currents, and rough seas
✔ Optimized Stability – Prevents dragging even in soft or shifting seabeds
Parameters:
| D | E | F | A | B | C | Nominal Weight |
| (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (kg) |
| 1303 | 606 | 2188 | 1827 | 1280 | 500 | 500 |
| 1479 | 688 | 2484 | 2073 | 1452 | 667 | 800 |
| 1888 | 878 | 3172 | 2648 | 1854 | 723 | 1500 |
| 2431 | 1131 | 4085 | 3409 | 2388 | 931 | 3000 |
| 2733 | 1298 | 4605 | 3800 | 2751 | 1047 | 4500 |
| 2873 | 1336 | 4828 | 4029 | 2822 | 1100 | 5000 |
| 3031 | 1430 | 5104 | 4227 | 3028 | 1161 | 6000 |
| 3110 | 1478 | 5242 | 4326 | 3131 | 1192 | 6500 |
| 3456 | 1607 | 5806 | 4846 | 3394 | 1324 | 9000 |
| 3628 | 1687 | 6095 | 5287 | 3563 | 1390 | 10000 |
| 3878 | 1803 | 6514 | 5437 | 3808 | 1486 | 12000 |
| 4085 | 1900 | 6864 | 5728 | 4012 | 1566 | 15000 |
| 4371 | 2031 | 7343 | 6129 | 4292 | 1674 | 18000 |
| 4507 | 2096 | 7571 | 6319 | 4426 | 1726 | 20000 |
| 5153 | 2396 | 8656 | 7225 | 5060 | 1974 | 30000 |
The description/sizes may be different with goods, please check with us when order.
