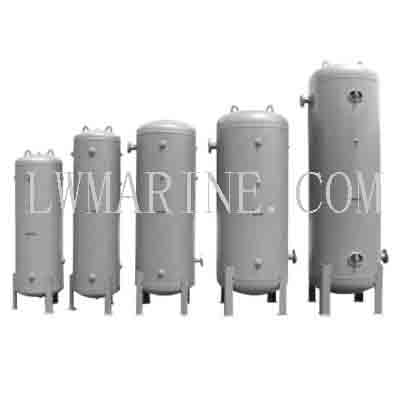

B8.0-3.3 Vertical Type Medium Pressure Air Receiver | Marine & Industrial Compressed Air Storage Tank
Product Overview
The B8.0-3.3 Vertical Type Medium Pressure Air Receiver is a high-capacity, industrial-grade pressure vessel engineered for demanding compressed air storage applications in both marine and industrial settings. Its vertical cylindrical design, constructed from robust carbon steel with welded end caps, provides optimal pressure retention and space efficiency—ideal for facilities with limited floor space. Certified to meet international standards including ASME, PED, and marine classification societies (ABS, DNV, BV), this receiver delivers reliable performance in medium-pressure systems (10-40 bar range), ensuring safe air supply for critical operations.
Key Applications
This vertical air receiver is designed to serve as the backbone of compressed air systems across multiple industries:
-
Marine Applications: Main engine starting air, control air for automation, pneumatic tools, and whistle systems on ships, offshore platforms, and drilling rigs
-
Industrial Manufacturing: Powering pneumatic machinery, automation equipment, assembly lines, and process control systems
-
Energy & Utilities: Supporting compressor buffering, pulsation damping, and emergency air supply in power plants and water treatment facilities
-
Transportation: Providing compressed air for braking systems and auxiliary functions in railway and heavy vehicle applications
Core Features & Advantages
-
Robust Carbon Steel Construction: Manufactured from high-tensile carbon steel with corrosion-resistant coatings, ensuring durability in harsh environments and long service life.
-
Vertical Space-Saving Design: Cylindrical vertical configuration minimizes footprint while maximizing capacity, perfect for space-constrained installations.
-
Complete Safety Compliance: Designed and certified to meet ASME, PED, and marine classification standards, featuring full safety valve and pressure gauge integration.
-
Superior Sealing Integrity: Advanced sealing technology prevents leakage and maintains air purity, critical for sensitive industrial and marine applications.
-
Extended Service Life: Engineered with food-grade natural rubber diaphragm rated for 200,000+ cycles, reducing maintenance needs and operational downtime.
-
Drinking Water System Safe: Food-grade materials and sealed construction make this unit suitable for potable water and sanitary air applications.
-
Expert Technical Support: Benefit from personalized product solutions and professional pre-sales and after-sales service tailored to your specific requirements.
Technical Specifications
| Model | Capacity (m³) | Design Pressure (MPa) | Working Pressure (MPa) | Design Temperature (°C) | Internal Diameter (mm) | Length (mm) | Height (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| B8.0-3.0 | 8.0 | 3.3 | 3.0 | 100 | 1500 | 4850 | 2365 | 4936 |
Ideal for Use In:
Ship engine rooms, offshore platforms, industrial plants, manufacturing facilities, power generation stations, and railway maintenance depots.
The description/sizes may be different with goods, please check with us when order.
