22mm Hydraulic Marine Windlass Double Gypsys
Professional Marine Anchoring Solution
Product Overview

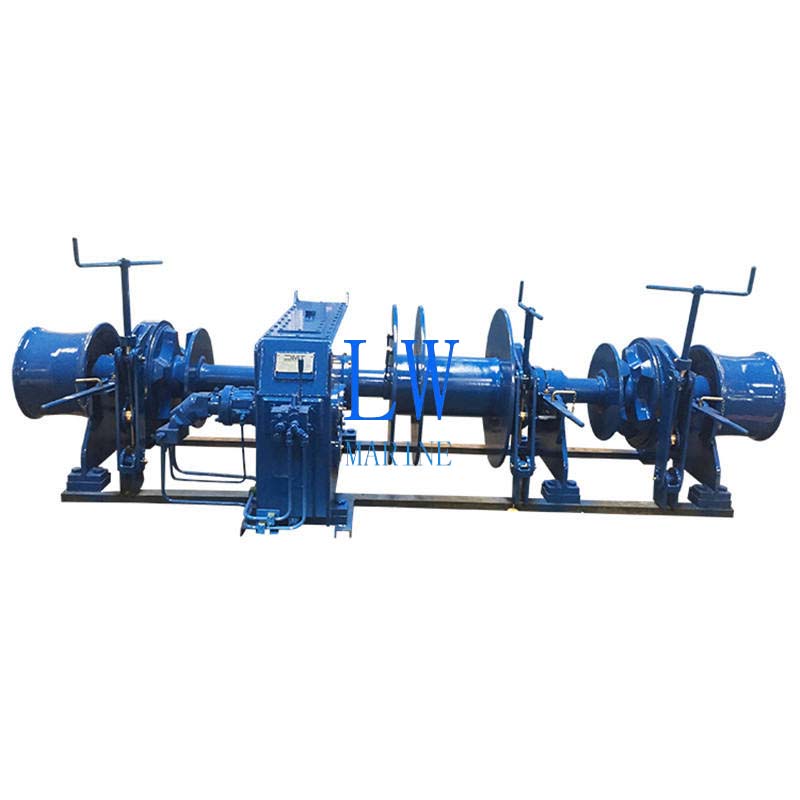

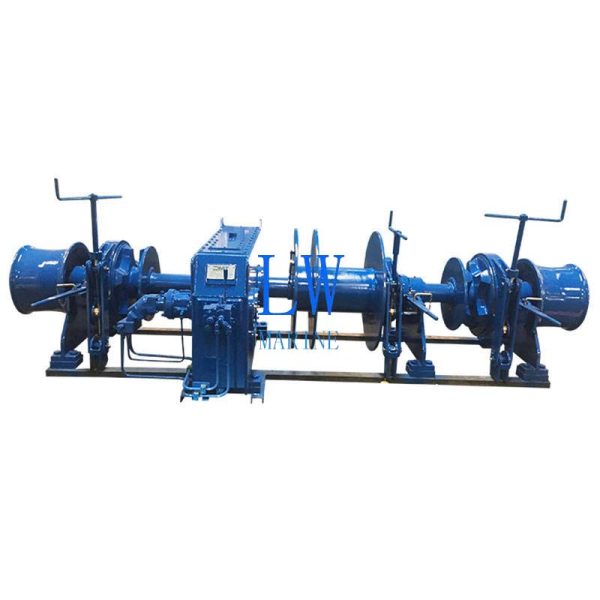

The 22mm Marine Windlass Double Gypsys is a heavy-duty marine deck system designed for professional vessel anchoring operations. This robust windlass combines superior performance with operational flexibility, making it ideal for commercial vessels requiring reliable anchor handling capabilities.
Technical Specifications
Core Features
-
Hydraulic motor driven operation
-
22mm chain capacity
-
Dual gypsy wheels for simultaneous anchor handling
-
Double warping heads for enhanced mooring capability
-
Gearbox options:
-
Standard closed gearbox (equivalent safety to open design)
-
Optional open gearbox configuration
-
Construction Materials
-
Main structure: High-strength cast steel
-
Critical components: 316L stainless steel (marine-grade corrosion resistance)
Control Systems
-
Manual brake and clutch
-
Local and remote control options
| Specifications | |
| Chain diameter(AM2) | 22mm |
| Max. anchoring depth | 82.5m |
| Power | 7.5KW |
| Pressure | 18Mpa |
| Flow | 20L/min |
| Working load | 20.6KN |
| Overload | 30.9KN |
| Support load | 126KN |
| Speed | ≥10m/min |
| Warping load | 10KN |
The description/sizes may be different with goods, please check with us when order.
