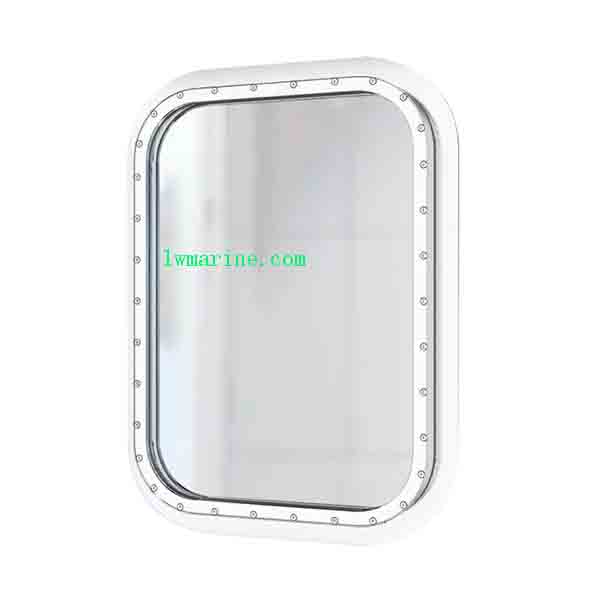

Marine Fixed Steel Wheelhouse Windows – Premium Visibility Solutions
Heavy-Duty Fixed Windows for Navigation Bridges & Wheelhouses
Our marine-grade fixed steel wheelhouse windows provide unobstructed visibility and superior durability for ship wheelhouses. These structurally integrated windows feature electrically heated glass options, making them ideal for vessels operating in cold climates and arctic conditions.
Key Features & Benefits
✔ Permanent Fixed Installation – Eliminates potential leak points
✔ Crystal Clear Visibility – Low-iron tempered glass with optional heating
✔ Marine-Grade Steel Construction – Hot-dip galvanized for maximum corrosion resistance
✔ Arctic-Ready Options – Electrically heated glass prevents frost and fogging
✔ Custom Sizes Available – Bespoke dimensions to fit any wheelhouse design
Technical Specifications
| Type | Clear Size (W×H) mm | Frame Size (W1×H1) mm | Cutout Size (W2×H2) mm | Corner Radius (r) mm | Glass Thickness (B) mm | Weight (N) kg |
|---|---|---|---|---|---|---|
| B | 800×630 | 848×678 | 852×682 | 126 | 12 | 15 |
| B | 800×700 | 848×758 | 852×762 | 126 | 12 | 15 |
| B | 900×630 | 948×678 | 952×682 | 126 | 12 | 17 |
| B | 900×710 | 948×758 | 952×762 | 126 | 12 | 17 |
| B | 900×800 | 948×848 | 952×852 | 126 | 12 | 17 |
| B | 1200×630 | 1248×678 | 1252×682 | 126 | 15 | 20 |
| B | 1200×710 | 1248×758 | 1252×762 | 126 | 15 | 20 |
| B | 1200×800 | 1248×848 | 1252×852 | 126 | 15 | 20 |
| B | 1500×710 | 1548×758 | 1552×762 | 126 | 15 | 20 |
| B | 1500×800 | 1548×848 | 1552×852 | 126 | 15 | 20 |
| B | 1800×710 | 1848×758 | 1852×762 | 126 | 15 | 20 |
| B | 1800×800 | 1848×848 | 1852×852 | 126 | 15 | 20 |
| B | 1800×900 | 1848×948 | 1852×952 | 126 | 15 | 20 |
The description/sizes may be different with goods, please check with us when order.
