Marine Weathertight Door Steel – Technical Specifications
Standard Compliance
✔ Manufactured in accordance with:
-
CB/T 3477-1996 (China Shipbuilding Standard)
-
ISO 6042:1980 (International Maritime Requirements)
Design & Application
-
Primary Use:
-
Superstructure access above freeboard deck
-
Deckhouse entryways on marine vessels
-
-
Construction:
-
Heavy-duty steel fabrication
-
Weather-resistant seals
-

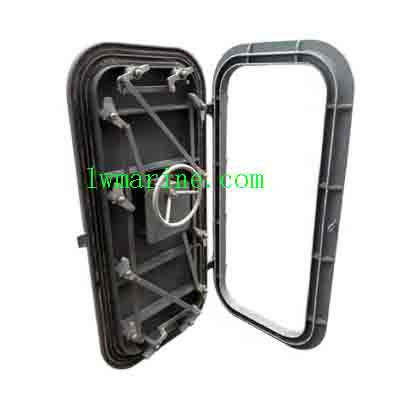

Marine Weathertight Door
Parameters:
| Class | Applicable Position |
| C | Front bulkhead of the third superstructure above freeboard deck(in the range 0.2-0.6L forward after perpendicular),and the aft bulkhead & side wall of the second superstructure. |
| A | Front bulkhead of the first superstructure above freeboard deck(in the range 0.1-0.7L forward after perpendicular) |
| B | Front bulkhead of the second superstructure above freeboard deck(in the range 0.1-0.7L forward after perpendicular), and the aft bulkhead & side wall of the first superstructure. |
| D | Front bulkhead of the fourth superstructure above freeboard deckand the aft bulkhead & side wall of the third superstructure. |
Marine Door Classification & Types
Door Type Specifications
Class A Doors
-
AF: Square corner design
-
AY: Rounded corner design
Class B Doors
-
BF: Square corner design
-
BY: Rounded corner design
Class C Doors
-
CF: Square corner design
-
CY: Rounded corner design
Class D Doors
-
DF: Square corner design
-
DY: Rounded corner design
| Door Leaf Thickness | Frame Material | Size Of Shelter | Frame Height |
| 8 | Angle Steel L100X63X10 | 50×6 | 32 |
| 6 | Angle Steel L100X63X10 | 32×4 | 34 |
| 4 | Angle Steel L100X63X8 | 32×4 | 36 |
The description/sizes may be different with goods, please check with us when order.
