Marine Aluminum Flush-Mount Watertight Hatch Cover – Technical Specifications
Product Overview

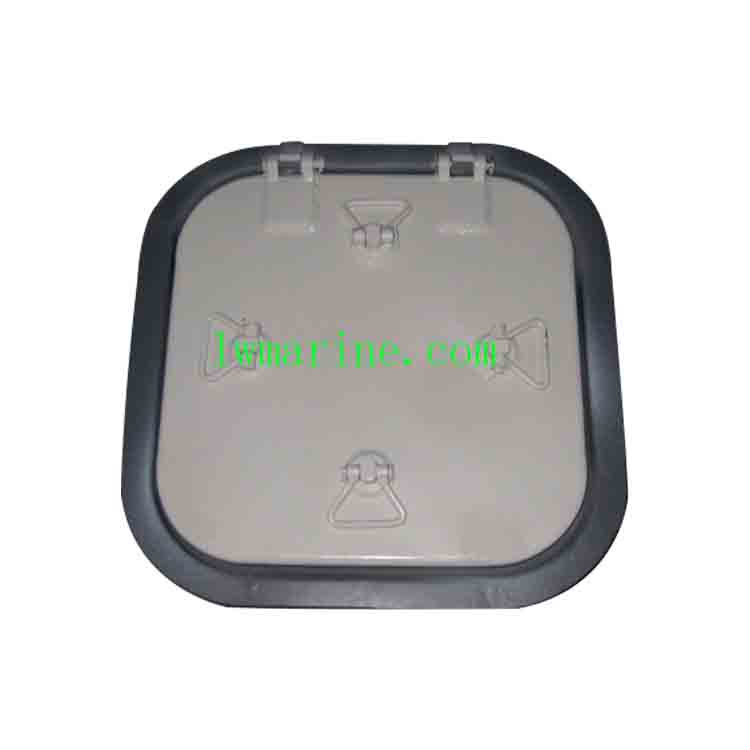

The aluminum sunk-type marine watertight hatch cover provides a low-profile, flush-mounted access solution for ship cabins and decks where surface continuity is required.
Parameters:
| Type | Size of Outside A3*B3 | T | Acces way size A*B | Size of Cover A1*B1 | Size of B.H. Opening A2*B2*R | Weight KG |
| A | 646*646 | 4 | 500*500 | 536*536 | 580*580*130 | 22.4 |
| 746*746 | 600*600 | 636*636 | 680*680*140 | 26.3 | ||
| B | 546*646 | 400*500 | 436*536 | 480*580 | 17.02 | |
| 596*746 | 450*600 | 486*632 | 530*680 | 21.06 |
The description/sizes may be different with goods, please check with us when order.
