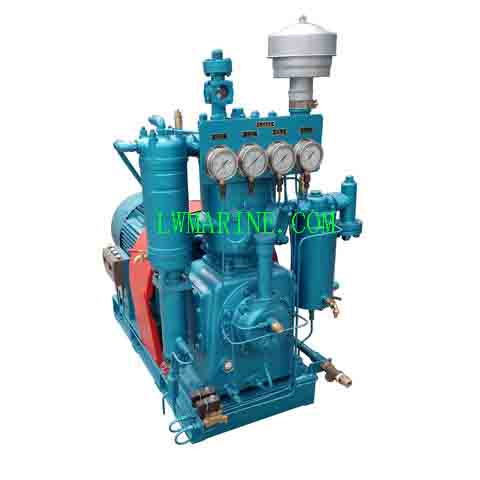

Marine Water Cooled Air Compressor – High-Performance V-Type Compressor for Ships
Reliable Water-Cooled Compressed Air Solution for Marine Engine Starting
The Marine Water Cooled Air Compressor is a heavy-duty V-type compressor specifically designed for starting large marine diesel engines and shipboard pneumatic systems. With 90-120 m³/h capacity at 3.0 MPa pressure, this automatically controlled unit provides exceptional cooling efficiency through its advanced seawater cooling system, making it ideal for large commercial vessels and offshore applications.
Key Features & Benefits
✔ Advanced Water Cooling System – Efficient heat dissipation using marine-grade heat exchangers for continuous operation
✔ High-Capacity Performance – 90-120 m³/h airflow ensures reliable main engine starting
✔ Automatic Control System – Precise pressure regulation for optimal performance
✔ Durable Marine Construction – Corrosion-resistant materials withstand harsh ocean environments
✔ Energy Efficient Operation – Optimized cooling circuit reduces power consumption
Technical Specifications
| Model | Capacity (m³/h) | Pressure (MPa) | Speed (r/min) | Weight (kg) | Dimensions (mm) | Power |
|---|---|---|---|---|---|---|
| CV-90/30 | 90 | 3.0 | 730 | 900 | 1600×1010×1050 | 22kW (30HP) |
| CV-120/30 | 120 | 3.0 | 975 | 1000 | 1600×1010×1050 | 30kW (40HP) |
The description/sizes may be different with goods, please check with us when order.
