JIS F3060 Marine Vertical Storm Valve | Heavy-Duty Check Valves for Marine Fuel & Lubrication Systems
Product Overview

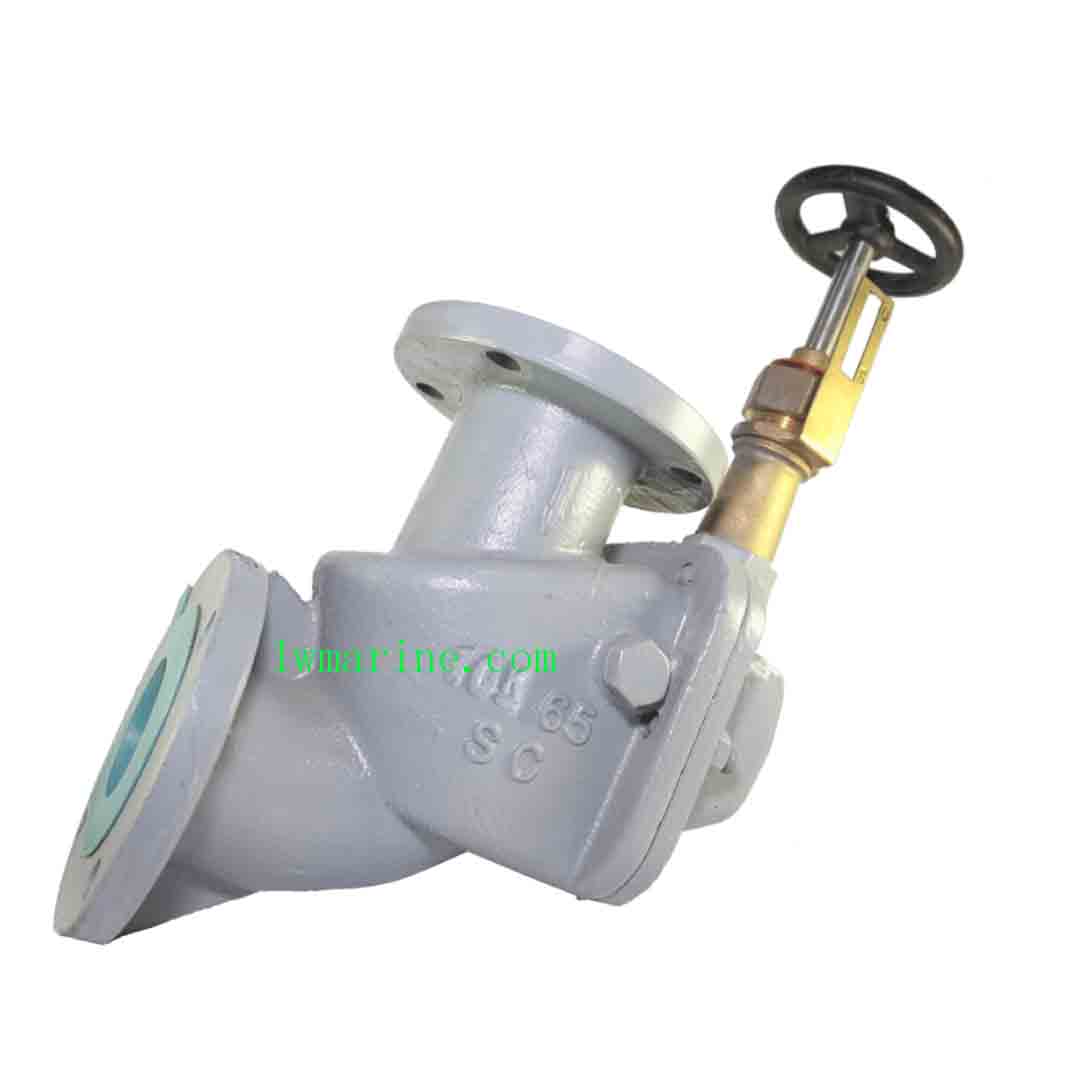

The JIS F3060 Marine Vertical Storm Valve is a heavy-duty check valve specifically designed for marine fuel oil and lubrication piping systems. Engineered to Japanese Industrial Standard JIS F3060 with flange dimensions conforming to JIS B2220, this vertical storm valve prevents backflow and controls media in critical shipboard applications. Featuring a durable cast steel body with bronze disc and stainless steel stem, it ensures reliable performance in the most demanding marine environments.
Key Features & Benefits
-
✅ JIS F3060 & JIS B2220 Compliant: Full compliance with Japanese marine standards
-
✅ Dual Pressure Ratings: Available in 5K and 10K configurations
-
✅ Cast Steel Construction: Superior strength and impact resistance
-
✅ Rubber Seat & Bronze Disc: Excellent sealing performance and corrosion resistance
-
✅ Stainless Steel Stem: Enhanced durability and reliability
-
✅ Vertical Design: Space-saving installation for marine applications
-
✅ OEM/ODM Services: Custom solutions for specific requirements
-
✅ Professional Export Team: Global logistics and support capabilities
Technical Specifications
-
Design Standard: JIS F3060
-
Flange Standard: JIS B2220
-
Body Material: Cast Steel
-
Seat: Rubber (superior sealing properties)
-
Disc: Bronze (excellent corrosion resistance)
-
Stem: Stainless Steel (high strength and durability)
-
Pressure Ratings: 5K, 10K
-
Nominal Diameter: DN50-DN200
Dimensions & Specifications
5K Pressure Rating:
| IMPA Code | Size | H | D | C | No. | h | t | D2 |
|---|---|---|---|---|---|---|---|---|
| 754241 | 050 | 210 | 130 | 105 | 4 | 15 | 14 | 100 |
| 754242 | 065 | 240 | 155 | 130 | 4 | 15 | 14 | 100 |
| 754243 | 080 | 260 | 180 | 145 | 4 | 19 | 14 | 125 |
| 754244 | 100 | 280 | 200 | 165 | 8 | 19 | 14 | 125 |
| 754245 | 125 | 330 | 235 | 200 | 8 | 19 | 16 | 125 |
| 754246 | 150 | 360 | 265 | 230 | 8 | 19 | 16 | 125 |
| 754247 | 200 | 459 | 320 | 280 | 8 | 23 | 22 | 125 |
10K Pressure Rating:
| IMPA Code | Size | H | D | C | No. | h | t | D2 |
|---|---|---|---|---|---|---|---|---|
| 754241 | 050 | 210 | 155 | 120 | 4 | 19 | 16 | 100 |
| 754242 | 065 | 240 | 175 | 140 | 4 | 19 | 18 | 100 |
| 754243 | 080 | 260 | 185 | 150 | 8 | 19 | 18 | 100 |
| 754244 | 100 | 280 | 210 | 175 | 8 | 19 | 18 | 100 |
| 754245 | 125 | 330 | 250 | 210 | 8 | 23 | 20 | 100 |
| 754246 | 150 | 360 | 280 | 240 | 8 | 23 | 22 | 100 |
| 754247 | 200 | 459 | 330 | 290 | 12 | 23 | 22 | 100 |
The description/sizes may be different with goods, please check with us when order.
